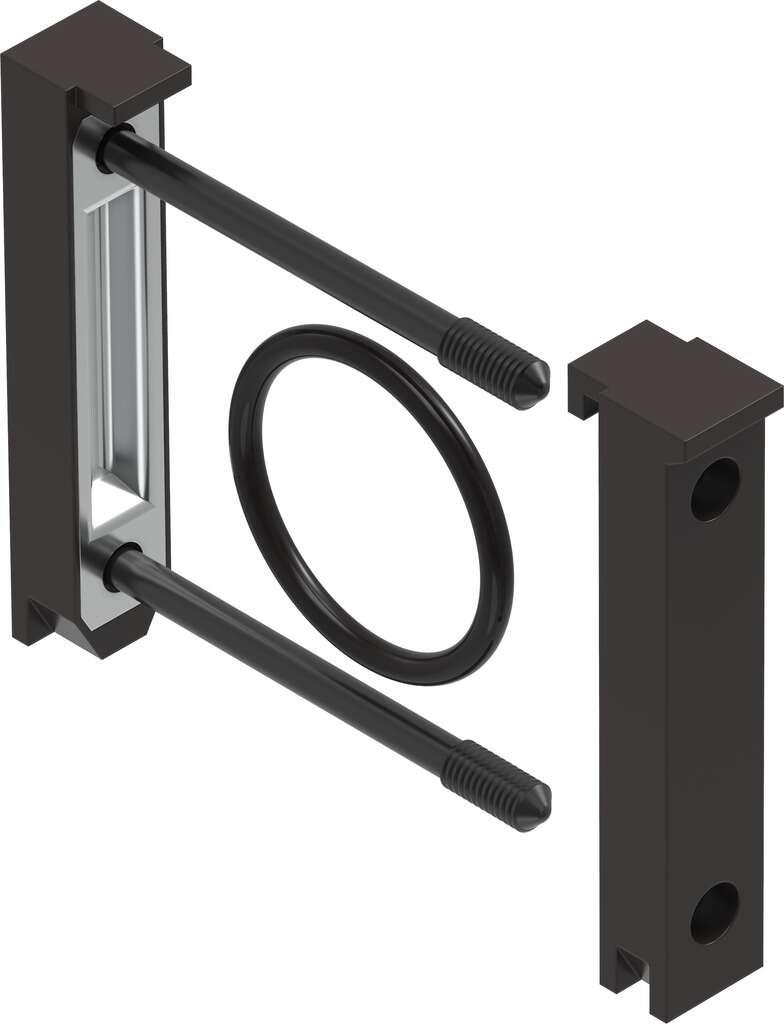

Festo MS4-MV-EX, Module Connector

The Festo MS4-MV-EX is a module connector used to mechanically and pneumatically link MS Series air preparation components. It is designed to keep multiple modules aligned and sealed correctly during the construction or expansion of an MS4 air service unit. This part does not perform air control or regulation on its own. Its job is simple: connect compatible MS modules securely so the system functions as a single unit.

Robust Connector Module for MS Series Air Preparation Units

The MS4-MV-EX allows separate MS Series modules to be joined without leaks or misalignment. Once installed, it ensures air flows correctly between connected units while maintaining the compact layout for which the MS system is known. In practical terms, it saves time during assembly and reduces the risk of installation errors when modules are not correctly connected.

Core Capabilities of the Festo MS4-MV-EX Module Connector

This connector is built to match the MS4 frame size and fits directly between compatible MS modules. There is no wiring, adjustment, or setup involved beyond correct placement during assembly.

• Used only with Festo MS Series modules.
• Maintains proper air passage between units.
• Keeps modules aligned and stable.
• Supports modular system expansion.
• Installed during initial system build.

Broad Range Application

Any setup using multiple MS Series air preparation components will rely on connectors like this to keep the system clean and reliable.

• Industrial automation lines
• Machine air supply assemblies
• Control cabinets with modular air prep units
• Factory compressed air distribution setups

For more information please check the datasheets.
