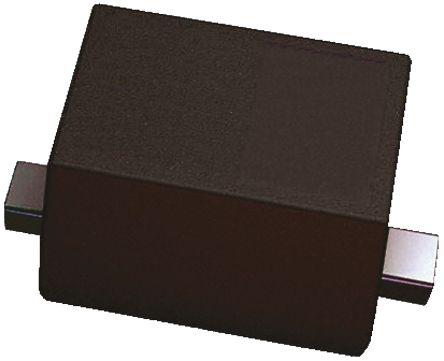

Nexperia Zener Diode, 18V 2% 300 mW SMT 2-Pin SOD-523

BZX585-B18 Nexperia Zener Diode, 18V 2% 300 mW SMT 2-Pin SOD-523
Nexperia

Product Information

Nominal Zener Voltage:
18V
Dimensions:
1.25 x 0.85 x 0.65mm
Mounting Type:
Surface Mount
Maximum Zener Impedance:
45Ω
Typical Voltage Temperature Coefficient:
14.4mV/K
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
0.05µA
Maximum Power Dissipation:
300 mW
Height:
0.65mm
Width:
0.85mm
Length:
1.25mm
Zener Type:
Voltage Regulator
Number of Elements per Chip:
1
Minimum Operating Temperature:
-65 °C
Package Type:
SOD-523
Zener Voltage Tolerance:
2%
Diode Configuration:
Single
Pin Count:
2
Test Current:
5mA
RoHs Compliant
Checking for live stock

This is Zener Diode 18V 2% 300 mW SMT 2-Pin SOD-523 manufactured by Nexperia. The manufacturer part number is BZX585-B18. Its nominal Zener voltage is 18v. The given dimensions of the product include 1.25 x 0.85 x 0.65mm. The product is available in surface mount configuration. While it has 45ω of maximum Zener impedance. The product has a typical 14.4mv/k voltage temperature coefficient . It has a maximum operating temperature of +150 °c. The product has a maximum 0.05µa of reverse leakage current. Provides up to 300 mw maximum power dissipation. In addition, the height is 0.65mm. Furthermore, the product is 0.85mm wide. Its accurate length is 1.25mm. The Zener is a type of voltage regulator Zener with unique features. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. The package is a sort of sod-523. It has 2% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 5ma test current.

pdf icon
BZX585 series(Technical Reference)
