RS Pro Air Switch Actuator,

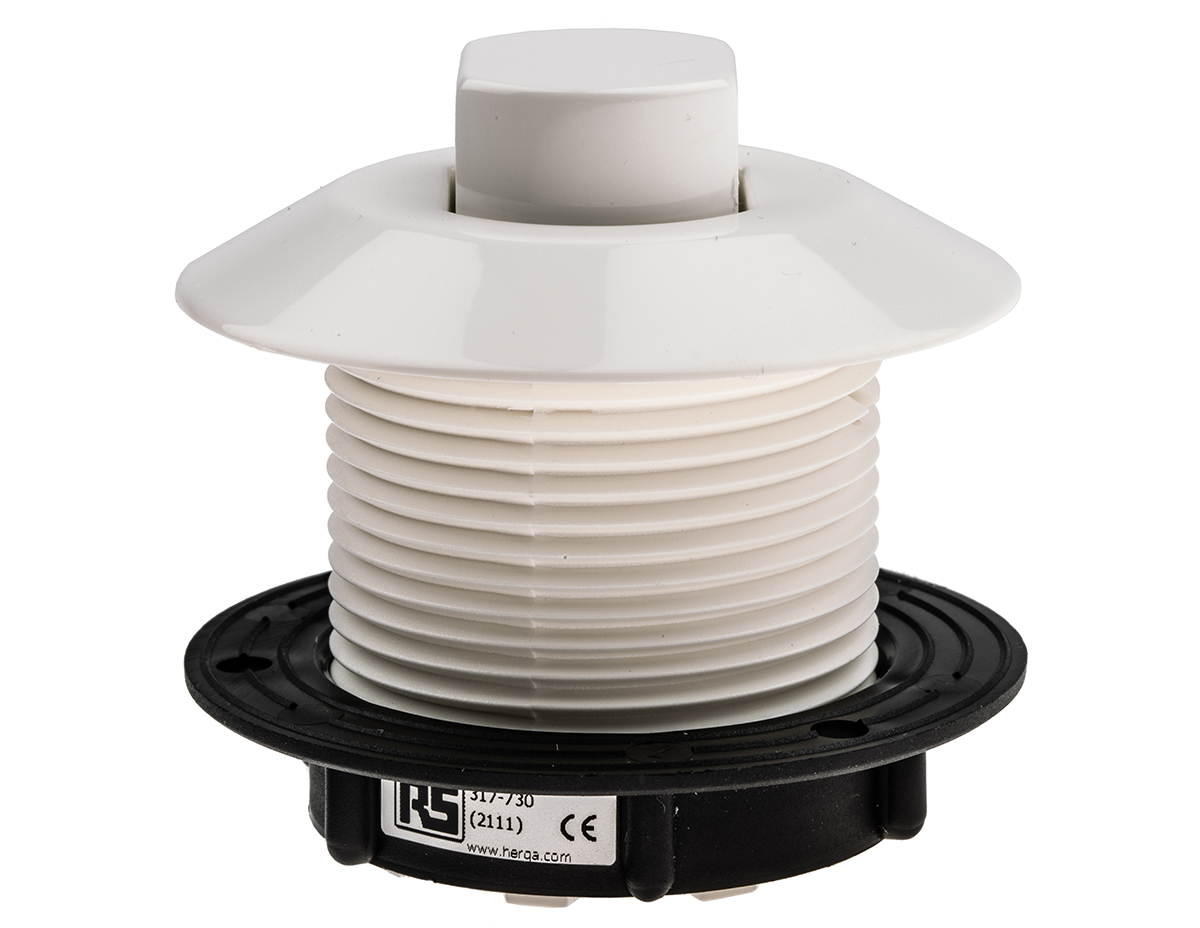

Surface mounting push button Surface mounting actuator suitable for use with all air switches. The push button requires a single mounting hole of 42mm dia. Operating temperature range -10°C → +60°C (subject to tube length limitations - see additional data tables) Surface Mount Actuator Actuators, Switch Elements, Tubing & Accessories The air operated switch system offers enhanced safety in hazardous areas by allowing remote operation of electrical circuits. The actuator is a bellows which, when compressed moves air down the air tubing to the switch element. This compressed air then expands a bellows in the switch, which operates the electrical contacts. When used in wet environments or where electrical switching would be dangerous due to arcing, the switch and all electrical wiring can be located outside the hazardous area giving the operator total electrical isolation for the equipment. Such applications include: Battery charging rooms, laboratories, garages, or wherever explosive gases, vapours or powders may exist. When assembled the air switch and actuator form a sealed system, therefore temperature variation will cause pressure changes, which can in extreme cases affect the performance of the switch. To prevent this the total volume of the system must be kept below a critical value for a given temperature range and, to this end, a maximum length of air tubing (and hence volume) can be given for any combination of switch and actuator. The additional data tables give these lengths in metres; for moderate and extreme temperatures. Additional Data - Max Tube Length (m) @ +10 to +30°C Operating Temperature Switch Switch Switch Switch Switch Switch 316-951 317-320 319-742 319-758 319-708 & 319-720 319-714 & 319-736 Actuator - - - - - - 316-945 32.0 11.2 5.0 3.5 39.3 21.6 317-718 16.0 7.2 5.0 3.5 16.4 11.2 317-055 11.2 4.0 3.0 2.0 12.8 8.0 317-061...

For more information please check the datasheets.
