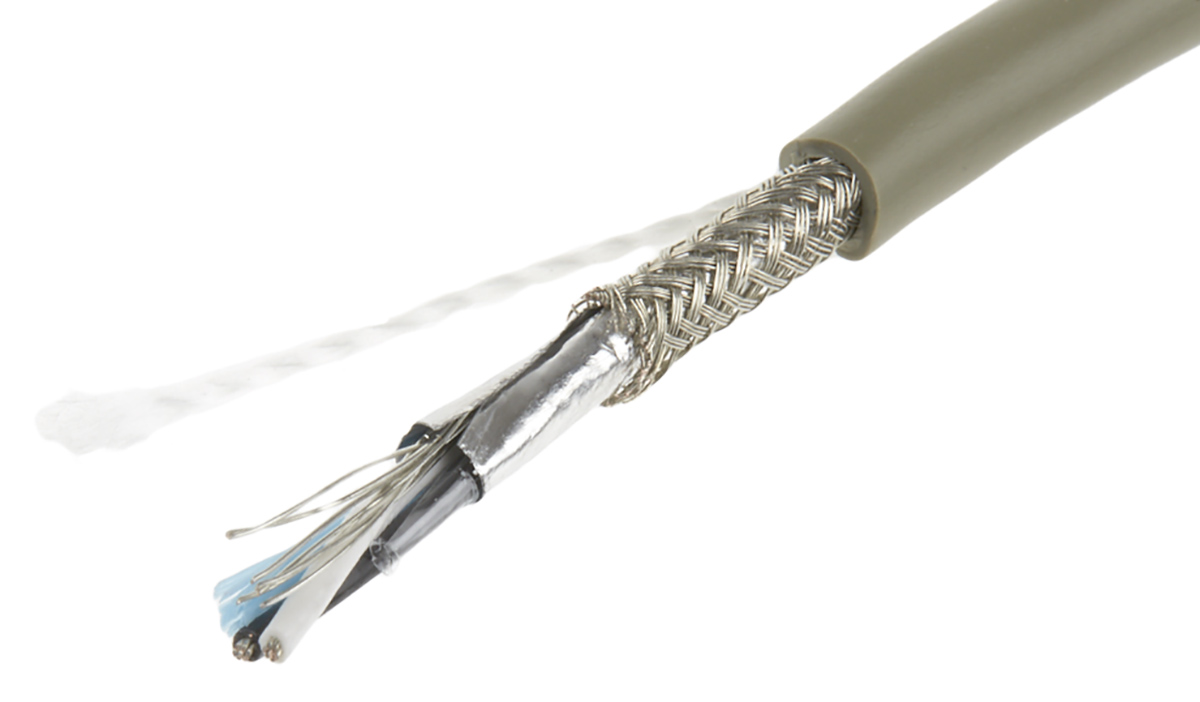

Alpha Wire 1 Pair Braid, Foil Multipair Industrial Cable, 22 AWG

B964014-GE321 Alpha Wire 1 Pair Braid, Foil Multipair Industrial Cable, 22 AWG
B964014 GE321
B964014 GE321
Alpha Wire

Product Information

American Wire Gauge:
22 AWG
Standards Met:
CE, CSA Certified, UL
Cable Shape:
Twisted Pair
Series:
ProTekt
Shield Type:
Foil and Braid
Fire Behaviour:
Flame Retardant
Core Strands:
7/30 AWG
Sheath Colour:
Grey
Length:
50m
Screened/Unscreened:
Screened
Number of Pairs:
1
Outer Sheath Material:
PVC
Number of Cores:
2
Voltage Rating:
300 V
Characteristic Impedance:
48 Ω
Outer Diameter:
4.95mm
Cross Sectional Area:
0.35 mm²
Ratings:
UL Style 2464
HTSUS:
8544.49.3080
RoHS Status:
ROHS3 Compliant
Conductor Strand:
7/30
Operating Temperature:
-30°C ~ 105°C
Usage:
-
Number of Conductors:
2 (1 Pair Twisted)
REACH Status:
REACH Unaffected
Jacket (Insulation) Material:
Poly-Vinyl Chloride (PVC)
Package:
Spool
Wire Gauge:
22 AWG
Shield Type:
Foil, Braid
Jacket (Insulation) Thickness:
0.0320" (0.813mm)
Moisture Sensitivity Level (MSL):
Not Applicable
Length:
164.0' (50.0m)
Conductor Insulation:
Poly-Vinyl Chloride (PVC)
standardLeadTime:
5 Weeks
Shield Coverage:
100%, 70%
Features:
Drain Wire, Oil Resistant, Rip Cord, UV Resistant
Jacket (Insulation) Diameter:
0.195" (4.95mm)
Conductor Material:
Copper, Tinned
Series:
Pro-Tekt™
Cable Type:
Multi-Conductor
Voltage:
300 V
Shield Material:
Aluminum; Copper, Tinned
ECCN:
EAR99
Base Product Number:
B964014
Jacket Color:
Gray
RoHs Compliant
Checking for live stock

This is 1 Pair Braid Foil Multipair Industrial Cable 22 AWG manufactured by Alpha Wire. The manufacturer part number is B964014 GE321. Features 22 awg - American Wire Gauge. The product complies with all safety standards, such as ce, csa certified, ul. Moreover, this cable has a twisted pair shape. The product protekt, is a highly preferred choice for users. The item is shielded with a foil and braid. The product has a flame retardant fire behaviour. The core strands are 7/30 awg. The sheath has an adorable grey colour. Its accurate length is 50m. Screen Options - screened. It includes 1 pair(s) . Whereas the outer sheath is manufactured from pvc material. The product consists of 2 cores. Moreover, the product has a nominal 300 v voltage rating. The typical characteristic impedance includes 48 ω. Its outer diameter is 4.95mm. The product has 0.35 mm² cross section area. It is rated with ul style 2464. It is assigned with possible HTSUS value of 8544.49.3080. The product is rohs3 compliant. It also features a 7/30 conductor strand. The product has -30°c ~ 105°c operating temperature range. It features 2 (1 pair twisted) conductors. In addition, it is reach unaffected. Its jacket is made from highly insulated poly-vinyl chloride (pvc) materials. It is shipped in spool package . Moreover, the product has a wire gauge of 22 awg. The item is shielded with a foil, braid. Furthermore, the insulated jacket is a 0.0320" (0.813mm) thick. Its typical moisture sensitivity level is not applicable. Its accurate length is 164.0' (50.0m). The conductor offers excellent insulation due to poly-vinyl chloride (pvc) materials. It has a long 5 weeks standard lead time. It covers shielding capability up to 100%, 70%. The splendid features of the product include drain wire, oil resistant, rip cord, uv resistant. The diameter of the jacket is 0.195" (4.95mm). The conductor is made from copper, tinned material. The product pro-tekt™, is a highly preferred choice for users. It is a typical multi-conductor cable. It carries a 300 v of voltage. The product is shielded with a robust aluminum; copper, tinned shield materials. The product is designated with the ear99 code number. Moreover, it corresponds to b964014, a base product number of the product. It comes in nice gray colour.

pdf icon
Datasheet(Technical Reference)
pdf icon
Cable Selection Guide(Technical Reference)
pdf icon
Pro-Tekt Catalogue(Technical Reference)
pdf icon
B964014 Datasheet(Datasheets)
