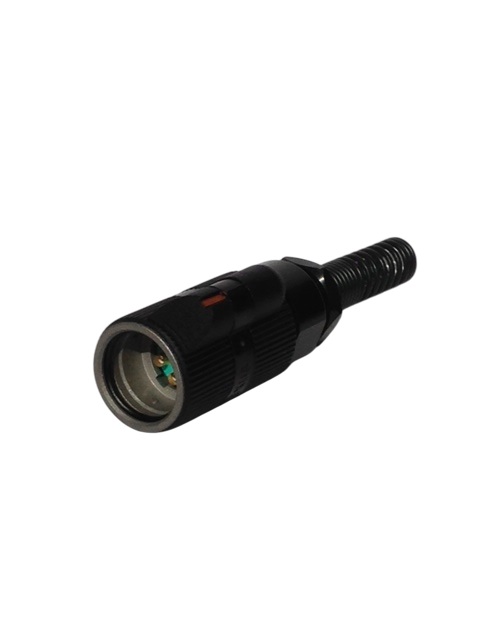

Amphenol AP-145/3-3, 5-Position MIL Spec Circular Connector

Amphenol NEXUS Technologies

Product Information

Product Type:
MIL Spec Circular Connector
Series:
AP-145
Contact Gender:
Male
Plug/Socket:
Plug
Standards/Approvals:
No
Number of Contacts:
5
HTSUS:
8536.69.4020
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Operating Temperature:
-55°C ~ 85°C
Shell Size, MIL:
-
Number of Positions:
5
Contact Finish - Mating:
Gold
Shielding:
-
Cable Opening:
-
Shell Material:
Polyamide (PA), Nylon, Glass Filled and Stainless Steel
Primary Material:
Plastic
Material Flammability Rating:
-
Voltage Rating:
60V
Shell Size - Insert:
-
Connector Type:
Plug, Female Sockets
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
Bayonet Lock
Qualification:
MIL-DTL-55116
Termination:
Solder Cup
standardLeadTime:
11 Weeks
Current Rating (Amps):
0.5A
Orientation:
Keyed
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Shell Finish:
-
Color:
Black
Series:
AP
Packaging:
Bulk
Grade:
-
Base Product Number:
AP-145
ECCN:
EAR99
RoHs Compliant
Checking for live stock

The Amphenol NEXUS Technologies AP-145/3-3, 5-Position Circular Connector Plug is a rugged electrical connector designed for secure and reliable signal transmission in demanding environments. Built with a circular connector format, it provides stable connections while maintaining durability and consistent performance.

Core Capabilities of the Amphenol 5-Position MIL Spec Circular Connector

  • 5-position configuration supports multi-signal connectivity in a compact design.
  • Female socket contacts provide secure and stable electrical connections.
  • Solder cup termination allows dependable wire attachment and ease of assembly.
  • Circular connector design helps ensure reliable mating and alignment.
  • Designed for use in challenging operational conditions.
  • Suitable for long-term use in professional and industrial applications.

Application Versatility of the Product

The Amphenol NEXUS AP-145/3-3 connector plug is typically used in:

  • Military and defence communication systems
  • Industrial control and instrumentation equipment
  • Audio and communication interfaces
  • Rugged electronic assemblies
  • Field-deployed electrical and signal systems

pdf icon
Datasheet - AP-145/3-3(Technical Reference)
pdf icon
M5516, TAC Brochure(Datasheets)
pdf icon
AP-145 Drawing(Product Drawings)
