Direction Type:
Uni-Directional
Maximum Peak Pulse Current Ippm:
65A
Width:
8.15 mm
Maximum Reverse Stand-off Voltage Vwm:
100V
Peak Pulse Power Dissipation Pppm:
5000W
Diode Configuration:
Single
Automotive Standard:
AEC-Q101
Maximum Reverse Leakage Current:
1μA
Clamping Voltage VC:
77.4V

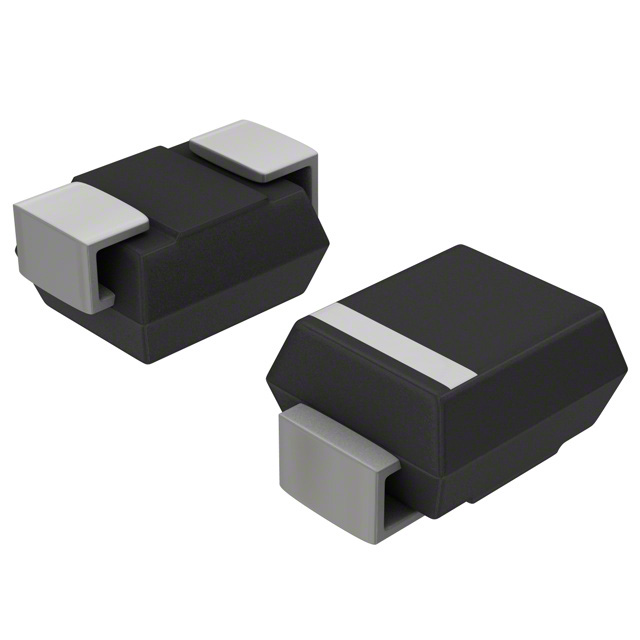

Package Type:
DO-214AB
Product Type:
TVS Diode
Maximum Operating Temperature:
175°C
ESD Protection:
Yes
Minimum Breakdown Voltage Vbr:
53.2V
Length:
6.25mm
Standards/Approvals:
IEC 61000-4-2, IEC 61000-4-4, IPC7531, J-STD-020, MIL-STD-75, UL
Mount Type:
Surface
Series:
SMC50J TVS
Height:
2.45mm
Minimum Operating Temperature:
-55°C
Test Current It:
1μA
Voltage - Clamping (Max) @ Ipp:
77.4V
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 175°C (TJ)
Package / Case:
DO-214AB, SMC
Type:
Zener
REACH Status:
REACH Unaffected
Voltage - Breakdown (Min):
53.2V
Applications:
General Purpose
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Unidirectional Channels:
1
standardLeadTime:
21 Weeks
Current - Peak Pulse (10/1000µs):
65A
Voltage - Reverse Standoff (Typ):
48V (Max)
Mounting Type:
Surface Mount
Series:
SMC50J
Supplier Device Package:
SMC
Packaging:
Tape & Reel (TR)
Capacitance @ Frequency:
-
Power Line Protection:
No
Power - Peak Pulse:
5000W (5kW)
Base Product Number:
SMC50
ECCN:
EAR99
