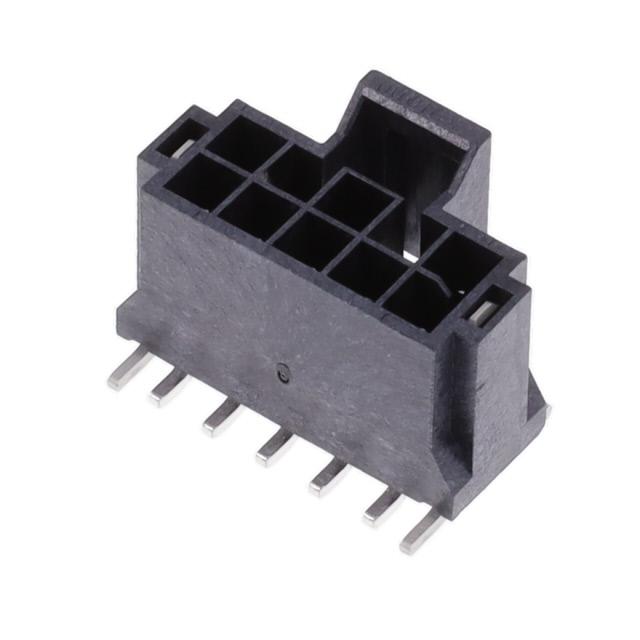

Connector System:
Wire-to-Board
Number of Contacts:
10
Orientation:
Vertical
Housing Material:
Liquid Crystal Polymer
Shrouded/Unshrouded:
Shrouded
Series:
105429
Contact Material:
Brass
Contact Gender:
Male
Row Pitch:
2.5mm
Current:
7A
Number of Rows:
2
Pitch:
2.5mm
Termination Type:
Surface Mount
Contact Plating:
Tin
Product Type:
PCB Header
Maximum Operating Temperature:
125°C
Minimum Operating Temperature:
-40°C
Mount Type:
Surface Mount
Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
30.0µin (0.76µm)
Number of Positions:
10
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.382" (9.70mm)
Voltage Rating:
250VAC
REACH Status:
REACH Unaffected
edacadModel:
1054291110 Models
Applications:
Automotive, General Purpose, Industrial, Medical, Military, Telecommunications
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/9958222
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Liquid Crystal Polymer (LCP)
Package:
Tape & Reel (TR)
Row Spacing - Mating:
0.098" (2.50mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
13 Weeks
Current Rating (Amps):
4A
Contact Length - Post:
-
Pitch - Mating:
0.098" (2.50mm)
Ingress Protection:
-
Features:
Pick and Place, Solder Retention
Mounting Type:
Surface Mount
Series:
Nano-Fit 105429
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
105429
ECCN:
EAR99
