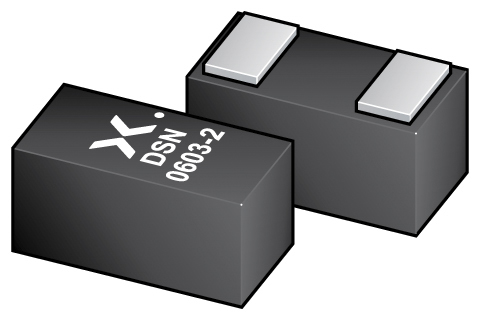

Nexperia PESD5V0R1BSFYL, Dual Bi-Directional ESD Protection Diode, 2-Pin DSN0603

PESD5V0R1BSFYL Nexperia , Dual Bi-Directional ESD Protection Diode, 2-Pin DSN0603
PESD5V0R1BSFYL Nexperia , Dual Bi-Directional ESD Protection Diode, 2-Pin DSN0603
Nexperia

Product Information

Automotive Standard:
No
Direction Type:
Bi-Directional
Maximum Operating Temperature:
125°C
Maximum Reverse Leakage Current:
50nA
ESD Protection:
Yes
Minimum Breakdown Voltage Vbr:
6V
Height:
0.29mm
Clamping Voltage VC:
5V
Width:
0.32 mm
Length:
0.62mm
Package Type:
DSN-0603
Number of Elements per Chip:
2
Minimum Operating Temperature:
-40°C
Maximum Reverse Stand-off Voltage Vwm:
5V
Standards/Approvals:
No
Maximum Peak Pulse Current Ippm:
4.5A
Product Type:
ESD Protection Diode
Diode Configuration:
Dual
Pin Count:
2
Mount Type:
Surface
RoHs Compliant
Checking for live stock

This is Dual Bi-Directional ESD Protection Diode 2-Pin DSN0603 manufactured by Nexperia. The manufacturer part number is PESD5V0R1BSFYL. The product complies with automotive standard - no. While is configured as bi-directional. It has a maximum operating temperature of 125°c. The product has a maximum 50na of reverse leakage current. ESD Protected - yes. In addition, the height is 0.29mm. Furthermore, the product is 0.32 mm wide. Its accurate length is 0.62mm. The package is a sort of dsn-0603. It consists of 2 elements per chip. Whereas, the minimum operating temperature of the product is -40°c. esd protection diode is a versatile product designed to provide user-defined applications. The diode features a dual configuration. It contains 2 pins. It has a surface type mount .
