The Nexperia PUSB3FR4Z is a hex-channel ESD protection diode array designed to safeguard high-speed data lines and sensitive electronic circuits from electrostatic discharge and transient voltage spikes. Housed in a compact 10-pin DFN2510A package, it delivers superior signal integrity and low clamping voltage for modern communication and computing systems. Moreover, this protection diode array is ideal for USB 3.0, HDMI, DisplayPort, and Ethernet interfaces, offering multi-line protection without compromising high-frequency performance or data transmission speed.
Engineered with six protection channels, the PUSB3FR4Z provides reliable and simultaneous ESD suppression across multiple signal lines. It safeguards components against IEC 61000-4-2 level 4 ESD strikes (±15 kV air discharge, ±8 kV contact discharge), ensuring compliance with international standards for circuit resilience and reliability.

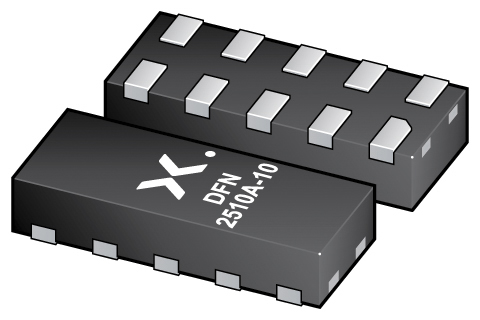

The DFN2510A 10-pin package offers a space-saving solution for dense PCB designs. With a footprint of only 2.5 mm × 1.0 mm, it supports modern miniaturised electronics without sacrificing performance. The package’s flat lead configuration ensures easy surface-mount assembly and improved thermal management.
The Nexperia PUSB3FR4Z features very low line capacitance, typically 0.25 pF, making it ideal for protecting high-speed differential lines where signal integrity is essential. It provides excellent transient suppression and low leakage current, maintaining stable operation and preventing damage to the downstream.
The PUSB3FR4Z is optimised for a wide range of data communication and consumer electronics applications, including:
For more information please check the datasheets.
