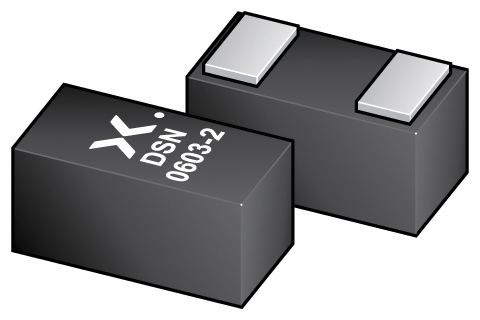

Nexperia PESD3V3X1BCSFYL, Dual Bi-Directional ESD Protection Diode, 2-Pin DSN0603
Product Information
Maximum Peak Pulse Current:
8A
Maximum Reverse Stand-off Voltage:
3.3V
Maximum Operating Temperature:
+125 °C
Dimensions:
0.62 x 0.32 x 0.29mm
Mounting Type:
Surface Mount
Capacitance:
1.1pF
Maximum Reverse Leakage Current:
100nA
ESD Voltage:
20kV
Minimum Breakdown Voltage:
6V
Direction Type:
Bi-Directional
Height:
0.29mm
Width:
0.32mm
Length:
0.62mm
Package Type:
DSN0603
Number of Elements per Chip:
2
Minimum Operating Temperature:
-40 °C
ESD Protection:
Yes
Maximum Clamping Voltage:
5.5V
Diode Configuration:
Dual
Pin Count:
2
Checking for live stock
FAQs
Yes. You can also search PESD3V3X1BCSFYL on website for other similar products.
We accept all major payment methods for all products including ET16800286. Please check your shopping cart at the time of order.
You can order Nexperia brand products with PESD3V3X1BCSFYL directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in TVS Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Nexperia PESD3V3X1BCSFYL, Dual Bi-Directional ESD Protection Diode, 2-Pin DSN0603. You can also check on our website or by contacting our customer support team for further order details on Nexperia PESD3V3X1BCSFYL, Dual Bi-Directional ESD Protection Diode, 2-Pin DSN0603.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16800286 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nexperia" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16800286.
Yes. We ship PESD3V3X1BCSFYL Internationally to many countries around the world.
This is Dual Bi-Directional ESD Protection Diode 2-Pin DSN0603 manufactured by Nexperia. The manufacturer part number is PESD3V3X1BCSFYL. It also has 8a maximum peak pulse current. While the maximised reverse stand-off voltage includes 3.3v. It has a maximum operating temperature of +125 °c. The given dimensions of the product include 0.62 x 0.32 x 0.29mm. The product is available in surface mount configuration. It provides a 1.1pf of capacitance value. The product has a maximum 100na of reverse leakage current. Moreover, it has about 20kv ESD voltage . It harbours a 6v of minimum breakdown voltage. While is configured as bi-directional. In addition, the height is 0.29mm. Furthermore, the product is 0.32mm wide. Its accurate length is 0.62mm. The package is a sort of dsn0603. It consists of 2 elements per chip. Whereas, the minimum operating temperature of the product is -40 °c. ESD Protected - yes. It is supplied with 5.5v of maximum clamping voltage. The diode features a dual configuration. It contains 2 pins.
