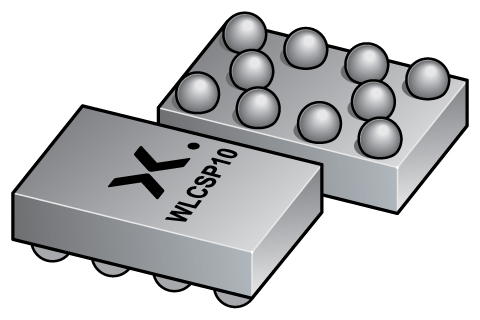

Nexperia PCMF2USB3SZ, Dual ESD Protection Diode, 10-Pin WLCSP

PCMF2USB3SZ Nexperia , Dual ESD Protection Diode, 10-Pin WLCSP
PCMF2USB3SZ Nexperia , Dual ESD Protection Diode, 10-Pin WLCSP
Nexperia

Product Information

Test Current It:
1mA
Direction Type:
Uni-Directional
Maximum Operating Temperature:
85°C
Maximum Reverse Leakage Current:
100nA
ESD Protection:
Yes
Minimum Breakdown Voltage Vbr:
6.45V
Peak Pulse Power Dissipation Pppm:
1500W
Height:
0.38mm
Clamping Voltage VC:
10.5V
Width:
1.22 mm
Length:
1.62mm
Package Type:
WLCSP
Number of Elements per Chip:
2
Minimum Operating Temperature:
-40°C
Maximum Reverse Stand-off Voltage Vwm:
5.8V
Maximum Peak Pulse Current Ippm:
100A
Product Type:
ESD Protection Diode
Diode Configuration:
Single
Pin Count:
10
Mount Type:
Surface Mount
RoHs Compliant
Checking for live stock

This is Dual ESD Protection Diode 10-Pin WLCSP manufactured by Nexperia. The manufacturer part number is PCMF2USB3SZ. While is configured as uni-directional. It has a maximum operating temperature of 85°c. The product has a maximum 100na of reverse leakage current. ESD Protected - yes. In addition, the height is 0.38mm. Furthermore, the product is 1.22 mm wide. Its accurate length is 1.62mm. The package is a sort of wlcsp. It consists of 2 elements per chip. Whereas, the minimum operating temperature of the product is -40°c. esd protection diode is a versatile product designed to provide user-defined applications. The diode features a single configuration. It contains 10 pins. It has a surface mount type mount .

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
