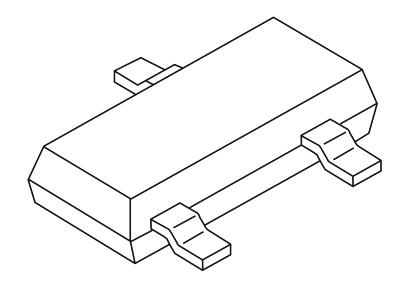

Nexperia MMBZ15VDL,215, Dual Uni-Directional ESD Protection Diode, 40W, 3-Pin SOT-23
Product Information
Maximum Peak Pulse Current:
1.9A
Maximum Reverse Stand-off Voltage:
12.8V
Dimensions:
3 x 1.4 x 1.1mm
Mounting Type:
Surface Mount
Direction Type:
Uni-Directional
Maximum Operating Temperature:
+150 °C
Minimum Breakdown Voltage:
14.3V
ESD Protection:
Yes
Peak Pulse Power Dissipation:
40W
Height:
1.1mm
Width:
1.4mm
Length:
3mm
Package Type:
SOT-23
Number of Elements per Chip:
2
Minimum Operating Temperature:
-55 °C
Maximum Reverse Leakage Current:
5nA
Maximum Clamping Voltage:
21.2V
Diode Configuration:
Common Anode
Pin Count:
3
Test Current:
1mA
Checking for live stock
FAQs
Yes. You can also search MMBZ15VDL,215 on website for other similar products.
We accept all major payment methods for all products including ET16800074. Please check your shopping cart at the time of order.
You can order Nexperia brand products with MMBZ15VDL,215 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in TVS Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Nexperia MMBZ15VDL,215, Dual Uni-Directional ESD Protection Diode, 40W, 3-Pin SOT-23. You can also check on our website or by contacting our customer support team for further order details on Nexperia MMBZ15VDL,215, Dual Uni-Directional ESD Protection Diode, 40W, 3-Pin SOT-23.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16800074 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nexperia" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16800074.
Yes. We ship MMBZ15VDL,215 Internationally to many countries around the world.
This is Dual Uni-Directional ESD Protection Diode 40W 3-Pin SOT-23 manufactured by Nexperia. The manufacturer part number is MMBZ15VDL,215. It also has 1.9a maximum peak pulse current. While the maximised reverse stand-off voltage includes 12.8v. The given dimensions of the product include 3 x 1.4 x 1.1mm. The product is available in surface mount configuration. While is configured as uni-directional. It has a maximum operating temperature of +150 °c. It harbours a 14.3v of minimum breakdown voltage. ESD Protected - yes. It has 40w of peak pulse power dissipation. In addition, the height is 1.1mm. Furthermore, the product is 1.4mm wide. Its accurate length is 3mm. The package is a sort of sot-23. It consists of 2 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. The product has a maximum 5na of reverse leakage current. It is supplied with 21.2v of maximum clamping voltage. The diode features a common anode configuration. It contains 3 pins. In addition, it has 1ma test current.
