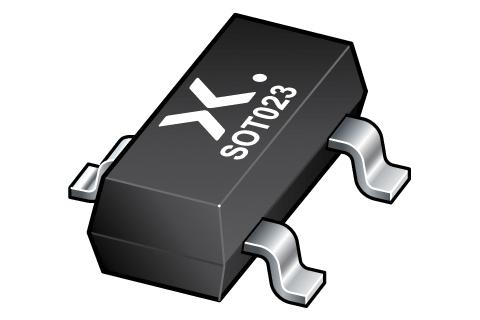

Nexperia MMBZ12VDL,215, Dual Uni-Directional ESD Protection Diode, 40W, 3-Pin SOT-23
Product Information
Dimensions:
3 x 1.4 x 1.1mm
Direction Type:
Uni-Directional
Capacitance:
140pF
Maximum Clamping Voltage:
17V
Diode Configuration:
Dual
Automotive Standard:
AEC-Q101
Test Current:
1mA
Maximum Peak Pulse Current:
2.35A
Minimum Breakdown Voltage:
11.4V
ESD Voltage:
30kV
Maximum Reverse Leakage Current:
5nA
Package Type:
TO-236AB
Number of Elements per Chip:
2
Maximum Operating Temperature:
+150 °C
ESD Protection:
Yes
Length:
3mm
Pin Count:
3
Peak Pulse Power Dissipation:
40W
Maximum Reverse Stand-off Voltage:
8.5V
Mounting Type:
Surface Mount
Width:
1.4mm
Height:
1.1mm
Minimum Operating Temperature:
-55 °C
Checking for live stock
FAQs
Yes. You can also search MMBZ12VDL,215 on website for other similar products.
We accept all major payment methods for all products including ET16800073. Please check your shopping cart at the time of order.
You can order Nexperia brand products with MMBZ12VDL,215 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in TVS Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Nexperia MMBZ12VDL,215, Dual Uni-Directional ESD Protection Diode, 40W, 3-Pin SOT-23. You can also check on our website or by contacting our customer support team for further order details on Nexperia MMBZ12VDL,215, Dual Uni-Directional ESD Protection Diode, 40W, 3-Pin SOT-23.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16800073 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nexperia" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16800073.
Yes. We ship MMBZ12VDL,215 Internationally to many countries around the world.
This is Dual Uni-Directional ESD Protection Diode 40W 3-Pin SOT-23 manufactured by Nexperia. The manufacturer part number is MMBZ12VDL,215. The given dimensions of the product include 3 x 1.4 x 1.1mm. While is configured as uni-directional. It provides a 140pf of capacitance value. It is supplied with 17v of maximum clamping voltage. The diode features a dual configuration. The product complies with automotive standard - aec-q101. In addition, it has 1ma test current. It also has 2.35a maximum peak pulse current. It harbours a 11.4v of minimum breakdown voltage. Moreover, it has about 30kv ESD voltage . The product has a maximum 5na of reverse leakage current. The package is a sort of to-236ab. It consists of 2 elements per chip. It has a maximum operating temperature of +150 °c. ESD Protected - yes. Its accurate length is 3mm. It contains 3 pins. It has 40w of peak pulse power dissipation. While the maximised reverse stand-off voltage includes 8.5v. The product is available in surface mount configuration. Furthermore, the product is 1.4mm wide. In addition, the height is 1.1mm. Whereas, the minimum operating temperature of the product is -55 °c.
