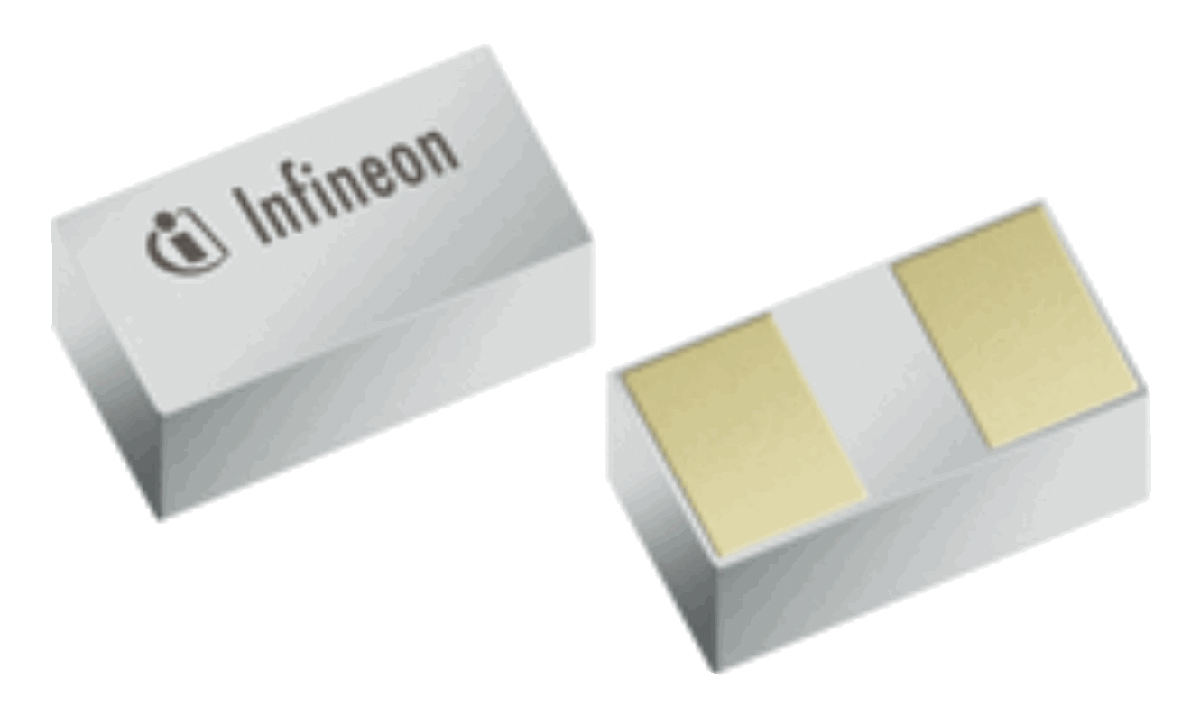

This is Bi-Directional TVS Diode 45W 2-Pin WLL-2-1 manufactured by Infineon. The manufacturer part number is ESD200B1CSP0201XTSA1. The given dimensions of the product include 0.58 x 0.28 x 0.15mm. While is configured as bi-directional. It provides a 6.5pf of capacitance value. It is supplied with 13v of maximum clamping voltage. The diode features a single configuration. In addition, it has 1ma test current. It also has ±3a maximum peak pulse current. It harbours a 6v of minimum breakdown voltage. It has about ±3a surge current rating . The product has a maximum 100na of reverse leakage current. The package is a sort of wll-2-1. It consists of 1 elements per chip. It has a maximum operating temperature of +125 °c. ESD Protected - yes. Its accurate length is 0.58mm. It contains 2 pins. It has 45w of peak pulse power dissipation. The product is available in surface mount configuration. Furthermore, the product is 0.28mm wide. In addition, the height is 0.15mm. Whereas, the minimum operating temperature of the product is -55 °c.
Datasheet(Technical Reference)
ESD Control Selection Guide V1(Technical Reference)
