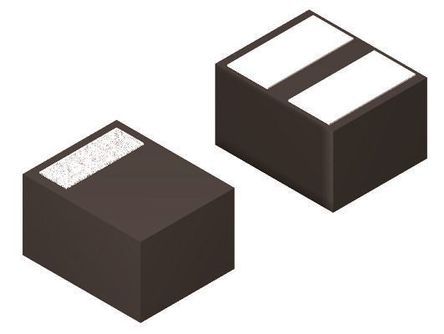

Semtech UCLAMP3301D.TCT, Triple Uni-Directional TVS Diode, 100W, 2-Pin SOD-323

UCLAMP3301D-TCT Semtech UCLAMP3301D.TCT, Triple Uni-Directional TVS Diode, 100W, 2-Pin SOD-323
UCLAMP3301D-TCT Semtech UCLAMP3301D.TCT, Triple Uni-Directional TVS Diode, 100W, 2-Pin SOD-323
Semtech

Product Information

Direction Type:
Uni-Directional
Maximum Peak Pulse Current Ippm:
10A
Width:
1.37 mm
Maximum Reverse Stand-off Voltage Vwm:
3.3V
Peak Pulse Power Dissipation Pppm:
100W
Diode Configuration:
Single
Automotive Standard:
No
Maximum Reverse Leakage Current:
500nA
Clamping Voltage VC:
9.5V
Package Type:
SOD-323
Number of Elements per Chip:
3
Product Type:
TVS Diode
Maximum Operating Temperature:
125°C
ESD Protection:
Yes
Minimum Breakdown Voltage Vbr:
3.5V
Length:
1.78mm
Standards/Approvals:
No
Pin Count:
2
Mount Type:
Surface
Series:
uCLAMP
Height:
1.07mm
Minimum Operating Temperature:
-55°C
Test Current It:
2μA
RoHs Compliant
Checking for live stock

This is Triple Uni-Directional TVS Diode 100W 2-Pin SOD-323 manufactured by Semtech. The manufacturer part number is UCLAMP3301D.TCT. While is configured as uni-directional. Furthermore, the product is 1.37 mm wide. The diode features a single configuration. The product complies with automotive standard - no. The product has a maximum 500na of reverse leakage current. The package is a sort of sod-323. It consists of 3 elements per chip. tvs diode is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 125°c. ESD Protected - yes. Its accurate length is 1.78mm. It contains 2 pins. It has a surface type mount . The product uclamp, is a highly preferred choice for users. In addition, the height is 1.07mm. Whereas, the minimum operating temperature of the product is -55°c.

pdf icon
uClamp 3301D TVS Diode Data Sheet(Technical Reference)
