Extension shaft for 194R disconnect swit

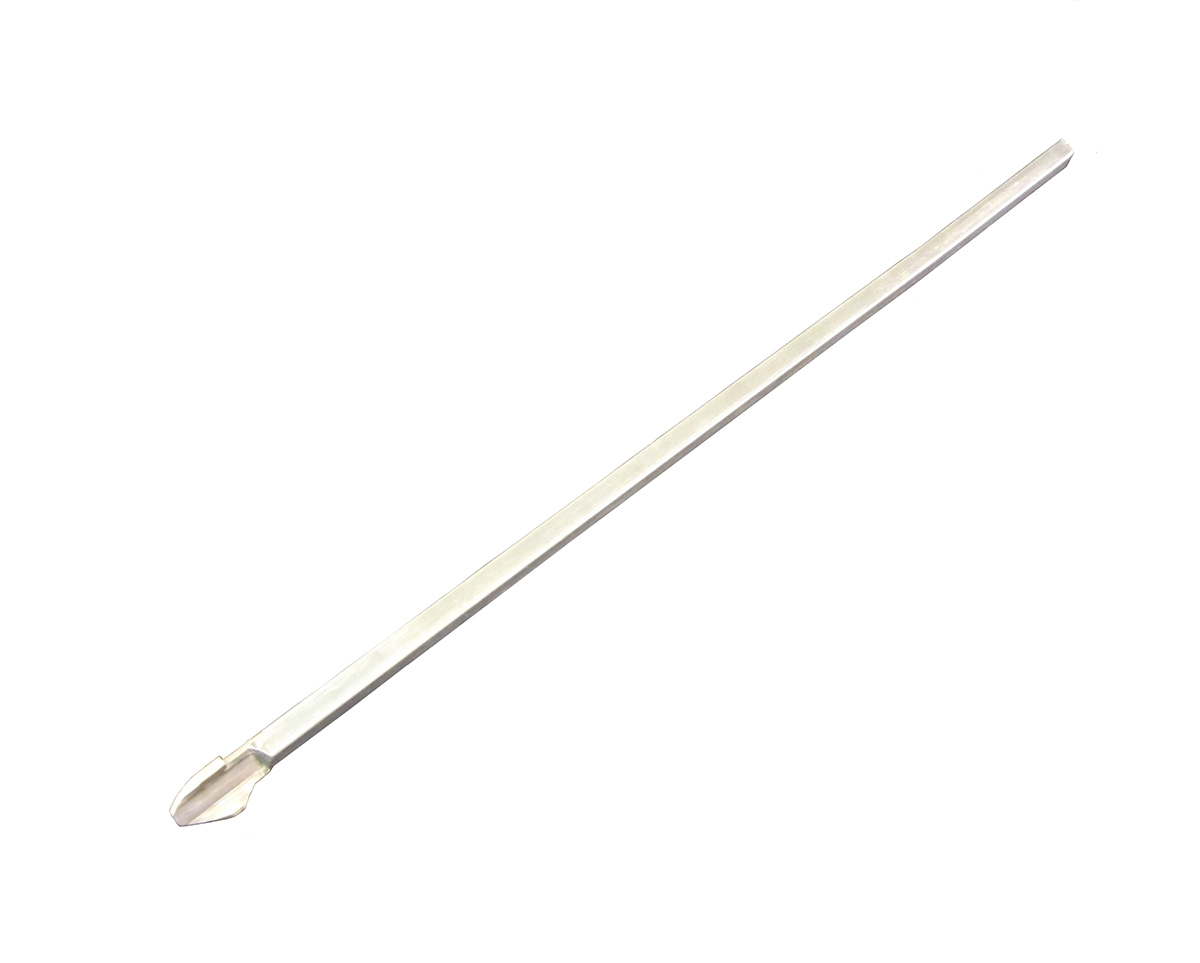

The Allen Bradley 194R-S1 is a premium 12-inch extension shaft meticulously crafted for use with 194R series rotary disconnect switches. This essential component bridges the gap between the disconnect switch mounted inside an enclosure and the operating handle on the exterior door. Designed for seamless integration and durability, this switch disconnector shaft enables safe and reliable remote operation of electrical disconnects, ensuring that maintenance personnel can isolate power circuits without exposing themselves to internal electrical hazards.

Reasons You Should Use the 194R-S1 Switch Disconnector Extension Shaft

This extension shaft is vital for customising the depth of your control panels and industrial enclosures. With a 305mm reach, it allows flexible component placement while maintaining ergonomic external control. This high-quality shaft ensures precise torque transfer, enhancing the safety and operational efficiency of electrical isolation systems.

194R-S1 Extension Shaft: Core Performance Features & Key Uses

• 12-Inch Standard Length: Offers a generous 305mm reach suitable for deep electrical enclosures.
• High-Strength Construction: Built to handle repeated switching cycles without twisting or deformation.
• Versatile Compatibility: Fully compatible with 140U-P, 194R-P, and 194R-PxT handle types.
• Easy Installation: Designed for quick attachment to both the switch mechanism and the rotary handle.
• Corrosion Resistant: Engineered to maintain structural integrity in industrial atmospheres.

Key Uses: Essential for motor control centers, industrial switchgear, and safety isolation in manufacturing plants.

For more information please check the datasheets.
