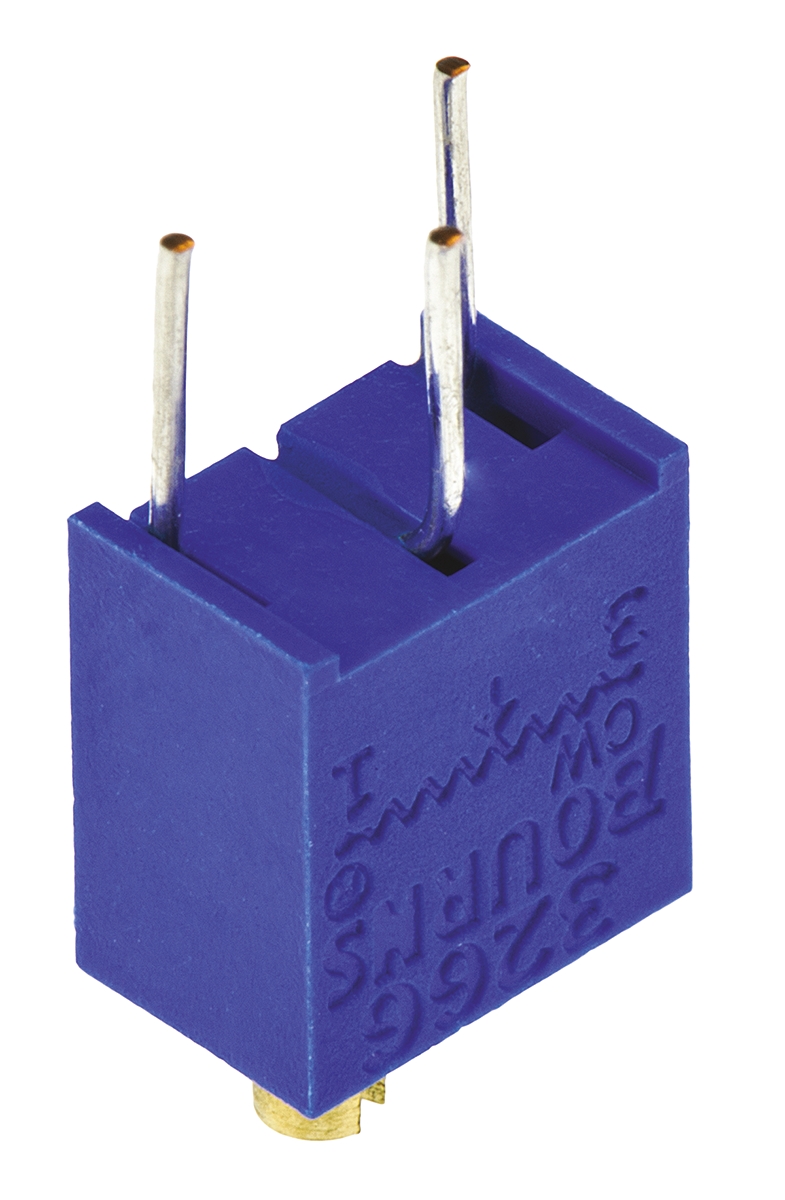

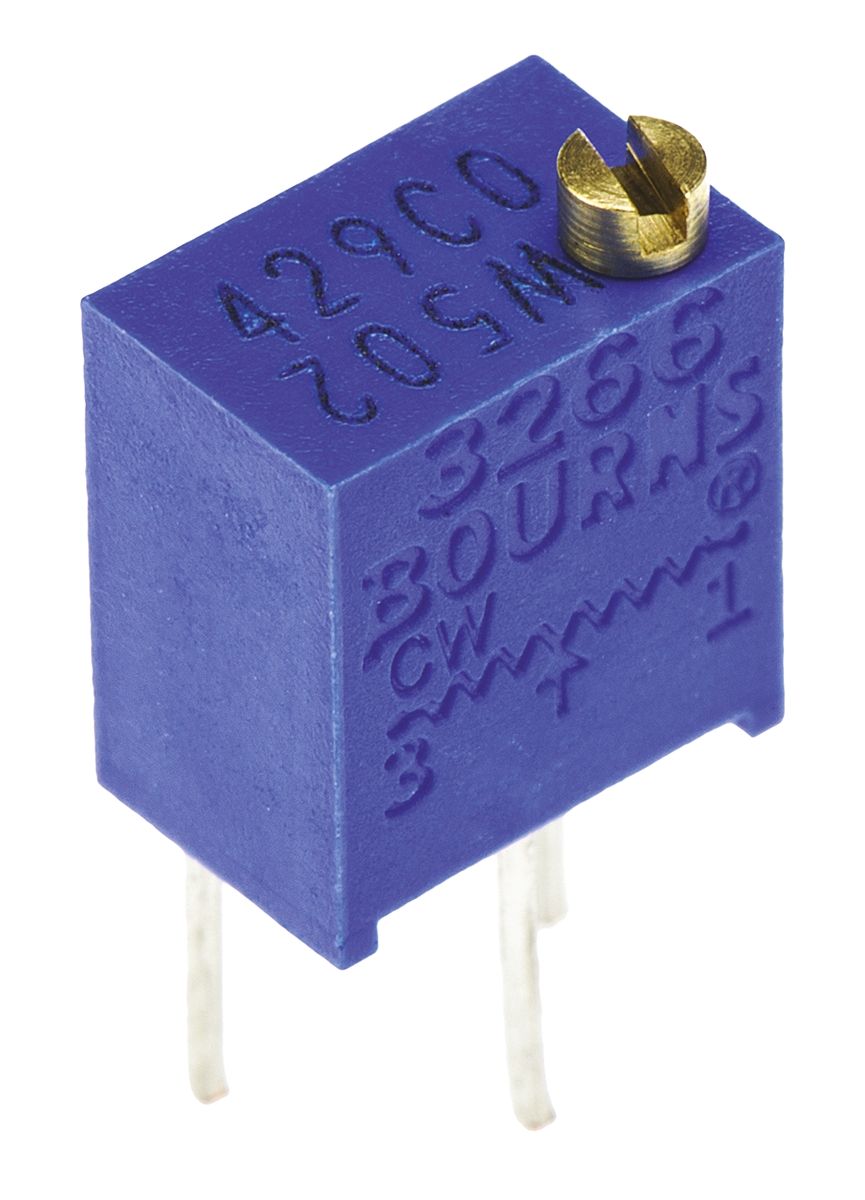

Bourns 3266W-1-502LF, Trimmer Resistor with Pin Terminations, 12-Turn, Top Adjust

Enrgtech Part No: ET16753744
|
Manufacturer Part No:
3266W-1-502LF
|
Manufacturer: Bourns

3266W-1-502LF Bourns , Trimmer Resistor with Pin Terminations, 12-Turn, Top Adjust

Product Information

Termination Style:

Temperature Coefficient:

±100 ppm/°C

Automotive Standard:

Number of Turns:

Product Type:

Trimmer Potentiometer

Maximum Operating Temperature:

150°C

Shaft Diameter:

1.78mm

Minimum Operating Temperature:

-55°C

Length:

6.71mm

Standards/Approvals:

RoHS

Pin Count:

Mount Type:

Through Hole

Checking for live stock

The 3266W‑1‑502LF by Bourns is a precision 12‑turn cermet trimmer potentiometer designed for through‑hole PCB installation. With a compact 1/4″ square body and top-adjust screw, this unit delivers 5 kω resistance at 0.25 W of power handling. Its sealed IP65 construction ensures reliable performance even in moisture-prone or wash-down environments, making it suitable for advanced tuning tasks in modern electronic assemblies. This reliable Bourns solution reduces drift and extends product lifespan, which is valuable for UK manufacturers and service teams.

Impressive Features of the Bourns 3266W-1-502LF, Trimmer Resistor with Pin Terminations

5 kΩ resistance with ±10% tolerance.
12‑turn screw adjustment for precision tuning.
0.25 W power rating, suitable for signal‑level circuits.
IP65 sealed case, resistant to dust and wash-down.
Cermet resistive element for stable, low‑noise performance.
Compact footprint: 6.71×4.5×7.24 mm.

What Benefits Does It Offer to Users?

Enables fine calibration of circuit parameters.
Provides reliable, repeatable adjustments.
Suits automated washing and soldering processes.
Delivers low thermal drift (<±100 ppm/°C), enhancing accuracy.
Fits high-density PCB layouts due to its compact size.

Typical Uses of the Bourns Trimmer Resistor with Pin Terminations, 12-Turn, Top Adjust

Fine-tuning gains in signal-conditioning circuits
Calibration in test and measurement instruments
Adjustable settings in industrial control systems
Environmental sensors and embedded electronics
Prototyping and lab use for precision resistance setting
