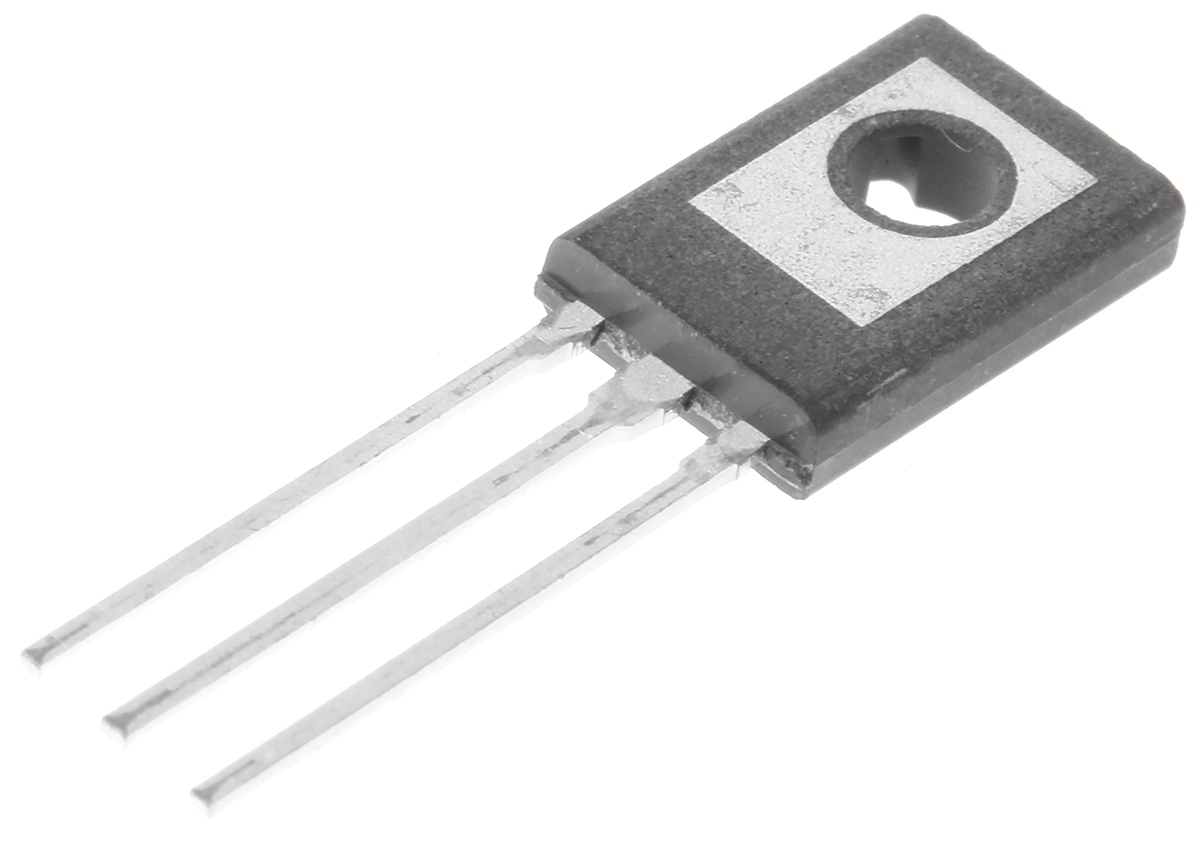

Littelfuse, C106DG, Thyristor, 400V 2.55A, 500μA 3-Pin, TO-225AA

Enrgtech Part No: ET16762094
|
Manufacturer Part No:
C106DG
|
Manufacturer: Littelfuse

C106DG Littelfuse, , Thyristor, 400V 2.55A, 500μA 3-Pin, TO-225AA

Product Information

Maximum Gate Trigger Current Igt:

500μA

Peak On-State Voltage:

2.2V

Rated Average On-State Current Irms:

2.55A

Surge Current Rating:

20A

Series:

C106

Repetitive Peak Reverse Voltage VDRM:

400V

Automotive Standard:

Maximum Gate Trigger Voltage Vgt:

Repetitive Peak Off-State Current:

100μA

Package Type:

TO-225

Minimum Operating Temperature:

-40°C

Maximum Holding Current Ih:

6mA

Checking for live stock

The Littelfuse C106DG is a high-performance through-hole thyristor designed for reliable power switching and phase control applications. Featuring a compact TO-225AA package, this gate-triggered thyristor manages a repetitive peak reverse voltage of 400V and an average on-state current of 2.55A. Its sensitive gate trigger current of 500µA makes it ideal for low-power triggering circuits, ensuring efficient performance in various industrial and consumer electronic systems.

Reasons You Should Use the Product

This Littelfuse C106DG thyristor provides exceptional thermal stability and high sensitivity for precise power control in space-constrained electronic assemblies.

Sensitive gate triggering (500µA) allows direct interface with low-power ICs.
Robust 400V blocking voltage ensures safety in AC line applications.

Core Performance Features & Key Uses

The C106DG is primarily utilised for motor control, heating regulation, and ignition circuits. Its 20A surge current rating provides a safety margin against transient loads.

Technical Specifications

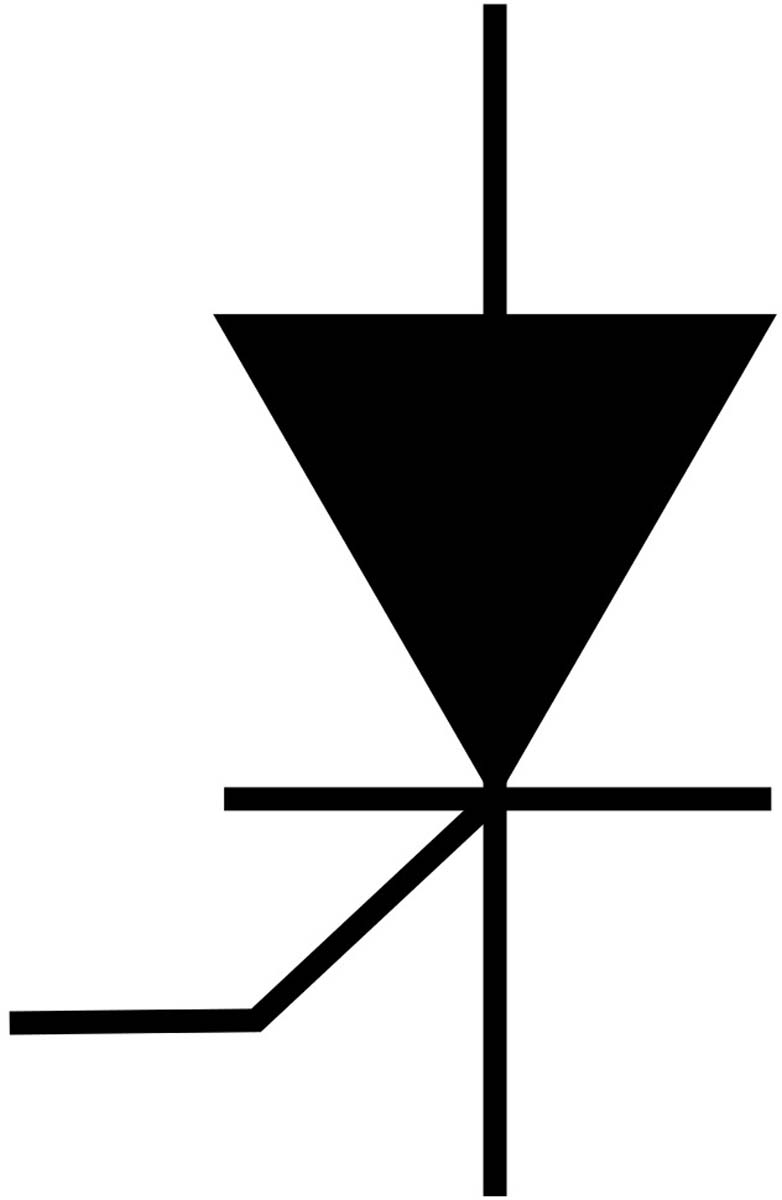

Type: SCR Thyristor
Voltage Rating: 400V (Peak Forward/Reverse)
On-State Current: 2.55A (Rated Average)
Gate Trigger Current: 500µA (Max)
Package: TO-225AA (Through-Hole)
Suitable Environments
Industrial control panels
Consumer appliance power modules
Temperature regulation systems
Low-power switching circuits
