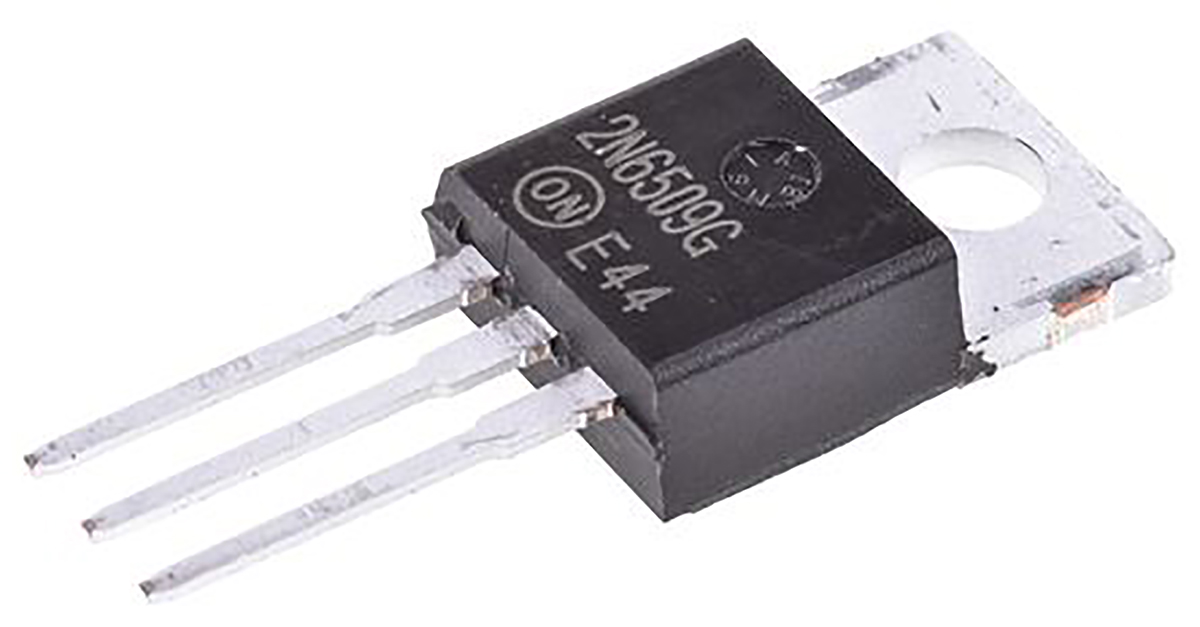

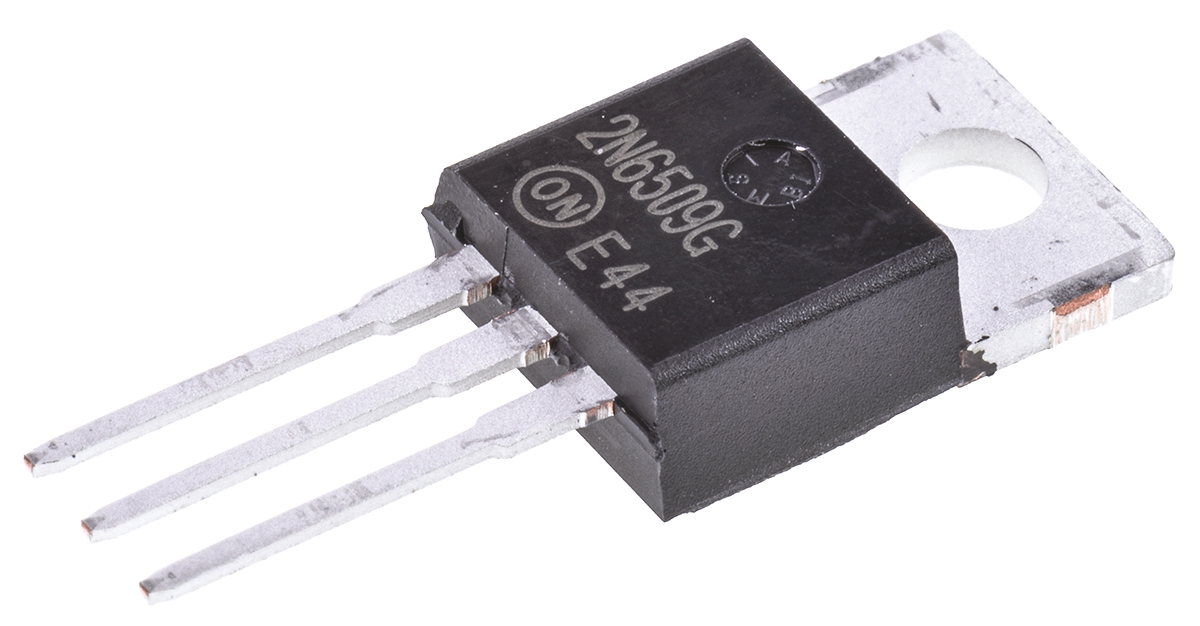

Littelfuse, 2N6509G, Thyristor, 800V 16A, 30mA 3-Pin, TO-220AB
Product Information
Repetitive Peak Forward Blocking Voltage:
800V
Repetitive Peak Reverse Voltage:
800V
Peak On-State Voltage:
1.8V
Dimensions:
10.28 x 4.82 x 9.28mm
Mounting Type:
Through Hole
Surge Current Rating:
250A
Rated Average On-State Current:
16A
Repetitive Peak Off-State Current:
0.01mA
Package Type:
TO-220AB
Minimum Operating Temperature:
-40 °C
Maximum Holding Current:
40mA
Maximum Gate Trigger Current:
30mA

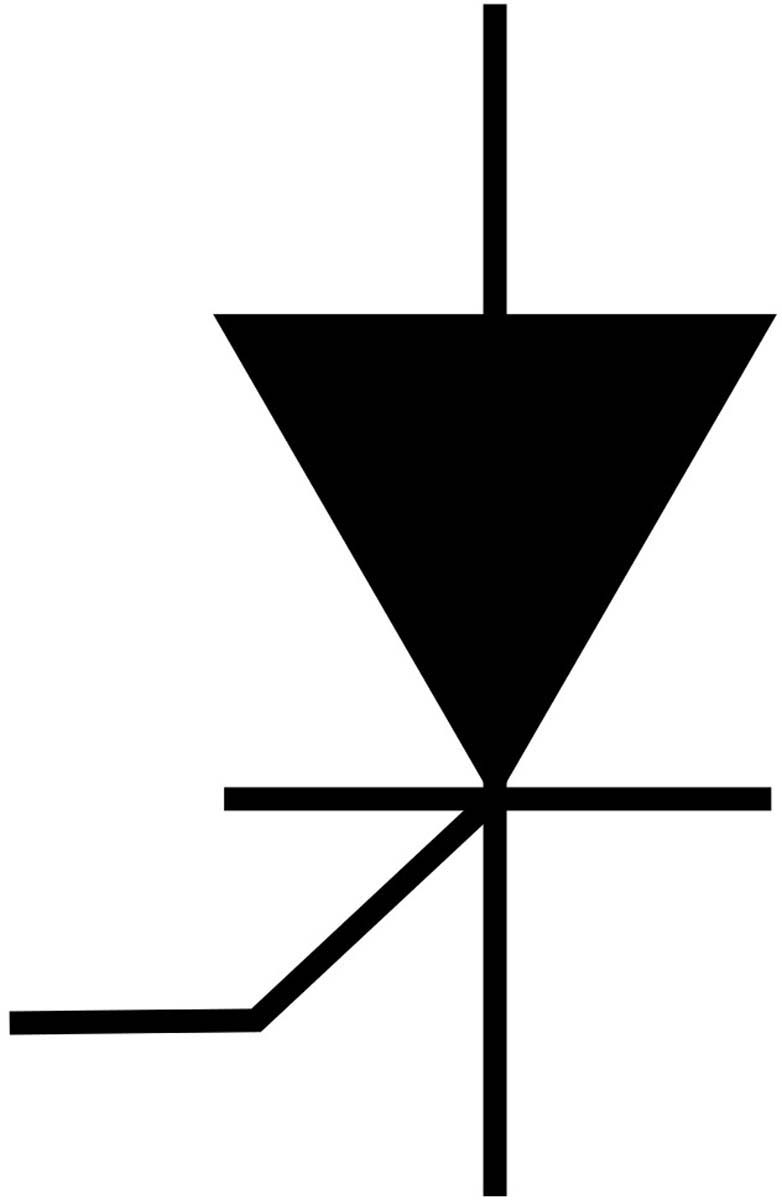

Thyristor Type:
SCR
Maximum Operating Temperature:
+125 °C
Pin Count:
3
Maximum Gate Trigger Voltage:
1.5V
Checking for live stock
FAQs
Yes. You can also search 2N6509G on website for other similar products.
We accept all major payment methods for all products including ET16762030. Please check your shopping cart at the time of order.
You can order Littelfuse brand products with 2N6509G directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Thyristors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Littelfuse, 2N6509G, Thyristor, 800V 16A, 30mA 3-Pin, TO-220AB. You can also check on our website or by contacting our customer support team for further order details on Littelfuse, 2N6509G, Thyristor, 800V 16A, 30mA 3-Pin, TO-220AB.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16762030 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Littelfuse" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16762030.
Yes. We ship 2N6509G Internationally to many countries around the world.
This is Thyristor 800V 16A 30mA 3-Pin TO-220AB manufactured by Littelfuse. The manufacturer part number is 2N6509G. Moreover, it has a repetitive peak forward blocking voltage about 800v . It has about 800v repetitive reverse voltage . It has a peak on-state voltage about 1.8v . The given dimensions of the product include 10.28 x 4.82 x 9.28mm. The product is available in through hole configuration. It has about 250a surge current rating . Moreover, it has about 16a rated average on-state current . Its repetitive peak off-state current is approximately 0.01ma . The package is a sort of to-220ab. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 40ma holding current . In addition, the product has a maximum 30ma gate trigger current . In addition, the product has a/an scr type thyristor . It has a maximum operating temperature of +125 °c. It contains 3 pins. Moreover, it has a maximum 1.5v gate trigger voltage .
