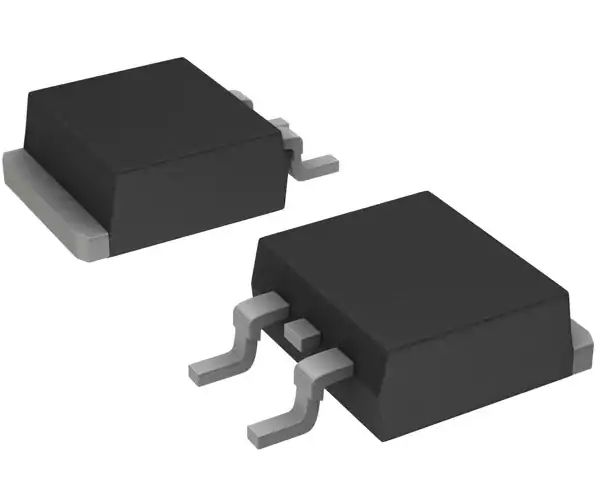

Thyristor,16TTS08S 16A 800V

16TTS08SPBF Thyristor,16TTS08S 16A 800V
Vishay

Product Information

Repetitive Peak Forward Blocking Voltage:
800V
Repetitive Peak Reverse Voltage:
800V
Peak On-State Voltage:
1.4V
Dimensions:
10.67 x 9.65 x 4.83mm
Mounting Type:
Surface Mount
Surge Current Rating:
200A
Rated Average On-State Current:
10A
Repetitive Peak Off-State Current:
0.5mA
Package Type:
D2PAK (TO-263)
Minimum Operating Temperature:
-40 °C
Maximum Holding Current:
100mA
Maximum Gate Trigger Current:
60mA
Thyristor Type:
SCR
Maximum Operating Temperature:
+125 °C
Pin Count:
3
Maximum Gate Trigger Voltage:
2V
RoHs Compliant
Checking for live stock

This is Thyristor16TTS08S 16A 800V manufactured by Vishay. The manufacturer part number is 16TTS08SPBF. Moreover, it has a repetitive peak forward blocking voltage about 800v . It has about 800v repetitive reverse voltage . It has a peak on-state voltage about 1.4v . The given dimensions of the product include 10.67 x 9.65 x 4.83mm. The product is available in surface mount configuration. It has about 200a surge current rating . Moreover, it has about 10a rated average on-state current . Its repetitive peak off-state current is approximately 0.5ma . The package is a sort of d2pak (to-263). Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 100ma holding current . In addition, the product has a maximum 60ma gate trigger current . In addition, the product has a/an scr type thyristor . It has a maximum operating temperature of +125 °c. It contains 3 pins. Moreover, it has a maximum 2v gate trigger voltage .
