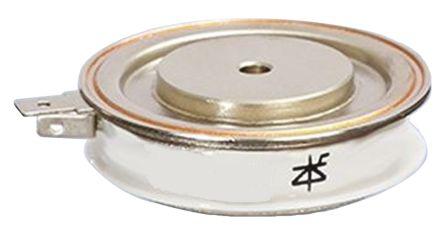

Infineon, T560N16TOF, Thyristor, 1600V 559A, 200mA 5-Pin, BG-T4814K0-1

T560N16TOF Infineon, , Thyristor, 1600V 559A, 200mA 5-Pin, BG-T4814K0-1
Infineon

Product Information

Repetitive Peak Forward Blocking Voltage:
1800V
Diameter:
48mm
Peak On-State Voltage:
1.92V
Dimensions:
48 (Dia.) x 14.5 (Height)mm
Mounting Type:
Stud
Repetitive Peak Reverse Voltage:
1600V
Surge Current Rating:
8000A
Rated Average On-State Current:
559A
Height:
14.5mm
Repetitive Peak Off-State Current:
50mA
Package Type:
BG-T4814K0-1
Minimum Operating Temperature:
-40 °C
Maximum Holding Current:
300mA
Maximum Gate Trigger Current:
200mA
Thyristor Type:
PCT
Maximum Operating Temperature:
+125 °C
Pin Count:
5
Maximum Gate Trigger Voltage:
2V
RoHs Compliant
Checking for live stock

This is Thyristor 1600V 559A 200mA 5-Pin BG-T4814K0-1 manufactured by Infineon. The manufacturer part number is T560N16TOF. Moreover, it has a repetitive peak forward blocking voltage about 1800v . Its diameter is 48mm. It has a peak on-state voltage about 1.92v . The given dimensions of the product include 48 (dia.) x 14.5 (height)mm. The product is available in stud configuration. It has about 1600v repetitive reverse voltage . It has about 8000a surge current rating . Moreover, it has about 559a rated average on-state current . In addition, the height is 14.5mm. Its repetitive peak off-state current is approximately 50ma . The package is a sort of bg-t4814k0-1. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 300ma holding current . In addition, the product has a maximum 200ma gate trigger current . In addition, the product has a/an pct type thyristor . It has a maximum operating temperature of +125 °c. It contains 5 pins. Moreover, it has a maximum 2v gate trigger voltage .
