HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Termination Style:
Solder
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
-
Wire Strip Length:
-

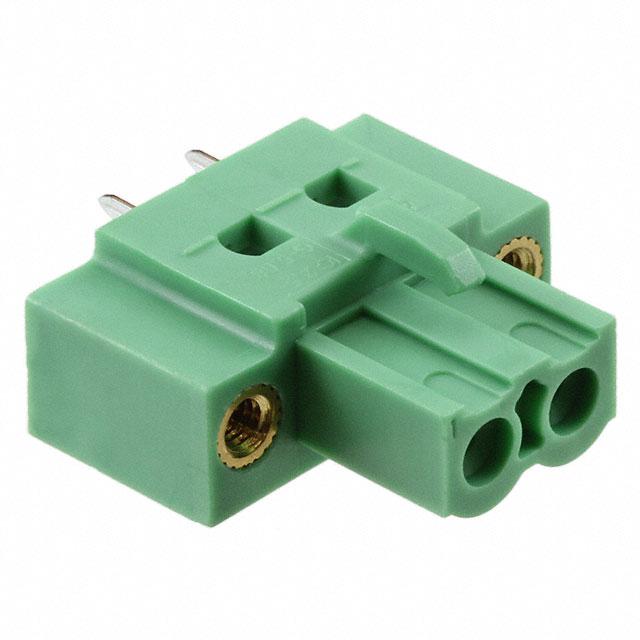

Type:
Header, Female Sockets
Number of Positions:
2
Contact Tail Length:
0.142" (3.60mm)
Wire Gauge or Range - mm²:
-
Plug Wire Entry:
-
Insulation Height:
0.748" (19.00mm)
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
12A
Wire Gauge or Range - AWG:
-
Voltage - UL:
300 V
Torque - Screw:
-
standardLeadTime:
6 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
630 V
Ingress Protection:
-
Features:
Mating and Mounting Flange, Retention Latches
Mounting Type:
Through Hole
Color:
Green
Series:
COMBICON ICV
Positions Per Level:
2
Header Orientation:
Vertical
Current - UL:
10 A
Pitch:
0.200" (5.08mm)
Number of Levels:
1
Contact Material:
-
ECCN:
EAR99
Connector System:
COMBICON MSTB 2.5
Tail Pin Length:
3.6mm
Number of Contacts:
2
Termination Type:
Solder
Housing Material:
Polyamide
Shrouded/Unshrouded:
Shrouded
Series:
ICV
Contact Material:
Copper Alloy
Contact Gender:
Female
Row Pitch:
5.08mm
Current:
12A
Number of Rows:
1
Standards/Approvals:
CSA, cULus, IEC 60068-2-27:2008-02, IEC 60068-2-6:2007-12, IEC 60068-2-70:1995-12, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60512-13-5:2006-02, IEC 60512-15-1:2008-05, IEC 60512-3-1:2002-02, IEC 60512-5-1:2002-02, IEC 60664-1:2007-04, IEC 61984, ISO 6988:1985-02, VDE
Voltage:
32 V
Contact Plating:
Tin Plated
Pitch:
5.08mm
Mating Pin Length:
3.6mm
Product Type:
PCB Header
Maximum Operating Temperature:
105°C
Minimum Operating Temperature:
-40°C
Mount Type:
Wave Soldering Mount
