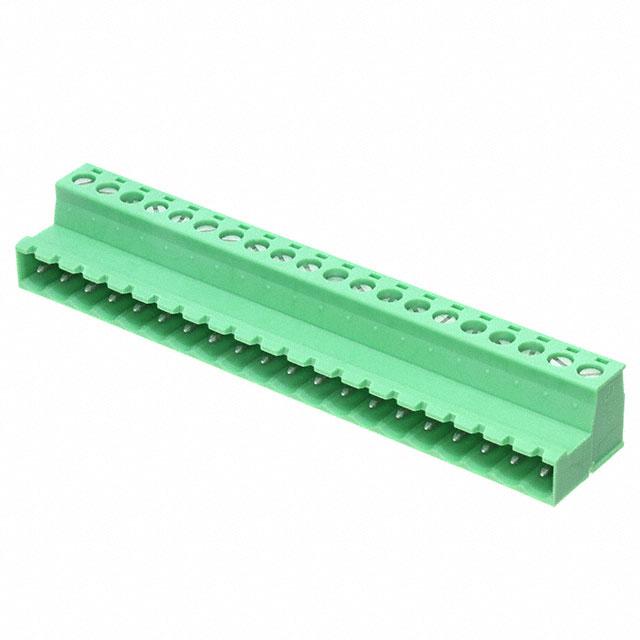

Phoenix Contact 1786352
Product Information
Series:
COMBICON IC
Current Rating:
12A
Mounting Type:
Plug-In
Voltage Rating:
320 V
Termination Method:
Screw
Gender:
Female
Colour:
Green
Material:
Polyamide
Length:
103.1mm
Width:
19.2mm
Depth:
15mm
Number of Rows:
1
Body Orientation:
Straight
Pitch:
5.08mm
Number of Contacts:
20
Type:
Inverted Plug
CAD Drawing:
3D CAD Model
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Termination Style:
Screw - Rising Cage Clamp
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
M3
Wire Strip Length:
7mm
Type:
Plug, Male Pins
Number of Positions:
20
Contact Tail Length:
-
Wire Gauge or Range - mm²:
0.2-2.5mm²
Plug Wire Entry:
180°
Insulation Height:
0.591" (15.00mm)
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
12A
Wire Gauge or Range - AWG:
12-30 AWG
Voltage - UL:
300 V
Torque - Screw:
0.5-0.6 Nm (4.4-5.3 Lb-In)
standardLeadTime:
12 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
630 V
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Color:
Green
Series:
COMBICON IC
Positions Per Level:
20
Header Orientation:
-
Current - UL:
10 A
Pitch:
0.200" (5.08mm)
Number of Levels:
1
Contact Material:
-
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 1786352 on website for other similar products.
We accept all major payment methods for all products including ET10552673. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 1786352 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Terminal Blocks - Headers, Plugs and Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 1786352. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 1786352.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET10552673 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET10552673.
Yes. We ship 1786352 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 1786352. The product combicon ic, is a highly preferred choice for users. The product has a current rating of 12a. The product is available in plug-in configuration. Moreover, the product has a nominal 320 v voltage rating. It allows screw termination method. In addition, female is the available "Gender" of the product. It has a decent green colour. The product is made from highly stable and reliable polyamide. Its accurate length is 103.1mm. Furthermore, the product is 19.2mm wide. The product comes in 15mm depth. It comes in 1 of rows. It has straight body orientation. Moreover, the product is 5.08mm. The product contains 20 contacts. It comes in inverted plug configuration. It has 3d cad model CAD drawing . It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. Moreover, it has screw - rising cage clamp terminal style. The product also features robust polyamide (pa), nylon housing material. It is available in screw size of m3. The typical length of the wire strip is 7mm. It comes in plug, male pins configuration. The product carries possible position value of 20. A 0.2-2.5mm² of wire gauge. It also a 180° plug wire entry. 0.591" (15.00mm) of insulation height. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). An IEC current of 12a. While 12-30 awg is its range or wire gauge. While 300 v is the typical voltage of the product. It carries torque - screw values of 0.5-0.6 nm (4.4-5.3 lb-in). It has a long 12 weeks standard lead time. The mating finish of the contact is tin. The nominal voltage of the product is 630 v. The product is available in free hanging (in-line) configuration. It has a classic green colour. It has 20 positions each level. The typical current includes 10 a. Moreover, the product is 0.200" (5.08mm). The product carries 1 levels. The product is designated with the ear99 code number.
