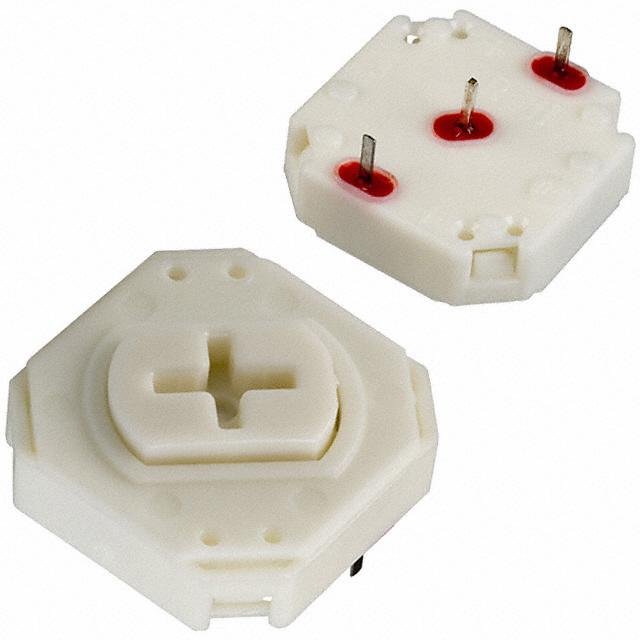

RAFI USA 3.14.100.601/0000

3-14-100-601-0000 RAFI USA 3.14.100.601/0000
RAFI USA

Product Information

Operating Force:
296gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
PC Pin
Actuator Height off PCB, Vertical:
6.20mm
Operating Temperature:
-25°C ~ 70°C
Actuator Orientation:
Top Actuated
Mechanical Life:
1,000,000 Cycles
REACH Status:
REACH Unaffected
Illumination Type, Color:
-
Outline:
15.00mm x 15.00mm
Package:
Tube
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.1A @ 35VAC/DC
standardLeadTime:
13 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
RF15N
Switch Travel:
0.50mm
Actuator Type:
Plunger for Cap
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
-
Base Product Number:
3.14.100
ECCN:
EAR99
Checking for live stock

This is manufactured by RAFI USA. The manufacturer part number is 3.14.100.601/0000. It has a 296gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has pc pin terminal style. Features 6.20mm actuator vertical height off PCB. The product has -25°c ~ 70°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 1,000,000 cycles. In addition, it is reach unaffected. The given outline of the product is 15.00mm x 15.00mm. It is shipped in tube package . It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.1a @ 35vac/dc. It has a long 13 weeks standard lead time. The product is available in through hole configuration. The product rf15n, is a highly preferred choice for users. The product has a switching travel of 0.50mm. The product carries plunger for cap actuator. Is this product illuminated? non-illuminated. Moreover, it corresponds to 3.14.100, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
RF15 Datasheet(Datasheets)
pdf icon
Packaging size chg 25/APR/2022(PCN Packaging)
