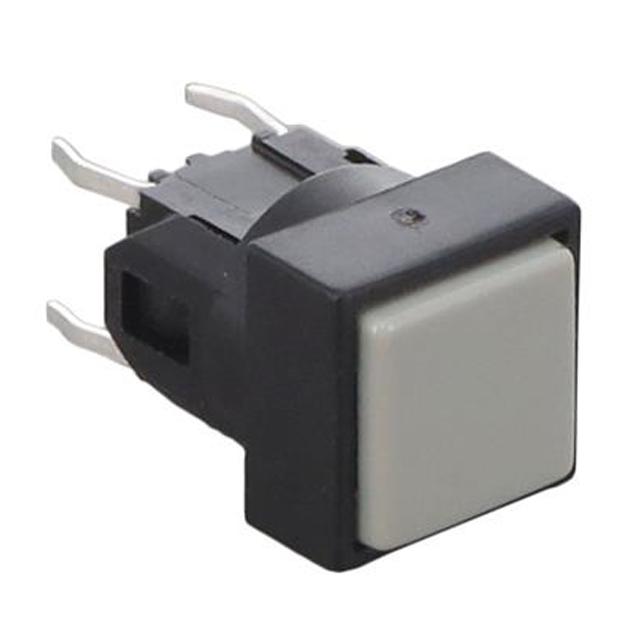

E-Switch TL1220S2BBGNN
Product Information
Operating Force:
180gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
PC Pin
Actuator Height off PCB, Vertical:
12.50mm
Operating Temperature:
-40°C ~ 85°C
Actuator Orientation:
Top Actuated
Mechanical Life:
500,000 Cycles
REACH Status:
REACH Unaffected
edacadModel:
TL1220S2BBGNN Models
edacadModelUrl:
/en/models/16020233
Illumination Type, Color:
-
Outline:
7.80mm x 6.00mm
Package:
Tray
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 12VDC
standardLeadTime:
12 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
TL1220
Switch Travel:
0.20mm
Actuator Type:
Square Button
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
-
Base Product Number:
TL1220
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search TL1220S2BBGNN on website for other similar products.
We accept all major payment methods for all products including ET22860595. Please check your shopping cart at the time of order.
You can order E-Switch brand products with TL1220S2BBGNN directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Tactile Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of E-Switch TL1220S2BBGNN. You can also check on our website or by contacting our customer support team for further order details on E-Switch TL1220S2BBGNN.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET22860595 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "E-Switch" products on our website by using Enrgtech's Unique Manufacturing Part Number ET22860595.
Yes. We ship TL1220S2BBGNN Internationally to many countries around the world.
This is manufactured by E-Switch. The manufacturer part number is TL1220S2BBGNN. It has a 180gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has pc pin terminal style. Features 12.50mm actuator vertical height off PCB. The product has -40°c ~ 85°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 500,000 cycles. In addition, it is reach unaffected. The given outline of the product is 7.80mm x 6.00mm. It is shipped in tray package . It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 12vdc. It has a long 12 weeks standard lead time. The product is available in through hole configuration. The product tl1220, is a highly preferred choice for users. The product has a switching travel of 0.20mm. The product carries square button actuator. Is this product illuminated? non-illuminated. Moreover, it corresponds to tl1220, a base product number of the product. The product is designated with the ear99 code number.
