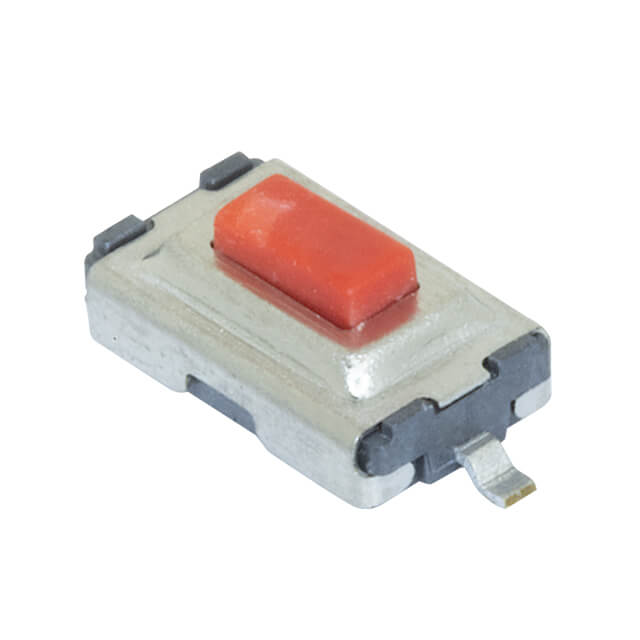

CUI Devices TS09-63-25-R-260-SMT-TR
Product Information
Operating Force:
260gf
HTSUS:
8536.50.9031
RoHS Status:
RoHS Compliant
Termination Style:
Gull Wing
Actuator Height off PCB, Vertical:
2.50mm
Operating Temperature:
-30°C ~ 80°C
Actuator Orientation:
Top Actuated
Mechanical Life:
40,000 Cycles
REACH Status:
REACH Unaffected
edacadModel:
TS09-63-25-R-260-SMT-TR Models
edacadModelUrl:
/en/models/15839063
Illumination Type, Color:
-
Outline:
6.10mm x 3.70mm
Package:
Tape & Reel (TR)
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
Not Applicable
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 12VDC
standardLeadTime:
20 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Series:
TS09
Switch Travel:
0.25mm
Actuator Type:
Rectangular Button
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
Polyphthalamide (PPA)
Base Product Number:
TS09-63
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search TS09-63-25-R-260-SMT-TR on website for other similar products.
We accept all major payment methods for all products including ET22751787. Please check your shopping cart at the time of order.
You can order CUI Devices brand products with TS09-63-25-R-260-SMT-TR directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Tactile Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of CUI Devices TS09-63-25-R-260-SMT-TR. You can also check on our website or by contacting our customer support team for further order details on CUI Devices TS09-63-25-R-260-SMT-TR.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET22751787 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "CUI Devices" products on our website by using Enrgtech's Unique Manufacturing Part Number ET22751787.
Yes. We ship TS09-63-25-R-260-SMT-TR Internationally to many countries around the world.
This is manufactured by CUI Devices. The manufacturer part number is TS09-63-25-R-260-SMT-TR. It has a 260gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs compliant. Moreover, it has gull wing terminal style. Features 2.50mm actuator vertical height off PCB. The product has -30°c ~ 80°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 40,000 cycles. In addition, it is reach unaffected. The given outline of the product is 6.10mm x 3.70mm. It is shipped in tape & reel (tr) package . It is designed as a off-mom switching function. Its typical moisture sensitivity level is not applicable. It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 12vdc. It has a long 20 weeks standard lead time. The product is available in surface mount configuration. The product ts09, is a highly preferred choice for users. The product has a switching travel of 0.25mm. The product carries rectangular button actuator. Is this product illuminated? non-illuminated. The actuator is designed from sturdy polyphthalamide (ppa) material. Moreover, it corresponds to ts09-63, a base product number of the product. The product is designated with the ear99 code number.
