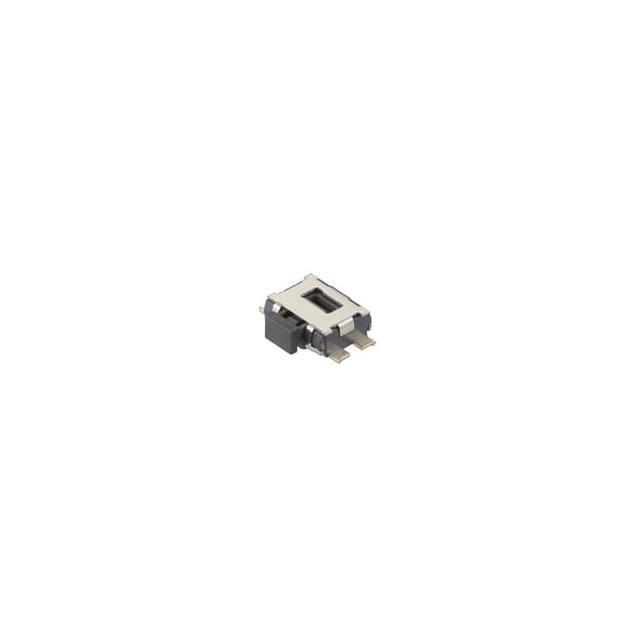

Black Button Tactile Switch, Single Pole Single Throw (SPST) 50 mA 0.65mm Surface Mount
Product Information
Operating Force:
2.2 N
Actuator Colour:
Black
Illuminated:
No
Mounting Type:
Surface Mount
Voltage Rating:
12V dc
Contact Current Rating:
50 mA
Contact Configuration:
SPST
Height:
1.25mm
Operating Temperature Range:
-30 → +85°C
Width:
3.55mm
Length:
3.5mm
Actuator Type:
Button
Actuator Length:
0.65mm
Mechanical Life:
100000Cycles
Switch Operation:
Momentary
Maximum Operating Temperature:
+85°C
Minimum Operating Temperature:
-30°C
Dimensions:
3.5 x 3.55mm
Operating Force:
224gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
SMD (SMT) Tab
Operating Temperature:
-30°C ~ 85°C
Actuator Orientation:
Side Actuated
Mechanical Life:
100,000 Cycles
Actuator Height off PCB, Vertical:
-
Illumination Type, Color:
-
Outline:
3.50mm x 2.90mm
Package:
Tape & Reel (TR)
Switch Function:
Off-Mom
Actuator Length, Right Angle:
0.50mm
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 12VDC
standardLeadTime:
18 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount, Right Angle
Series:
SKSC
Switch Travel:
0.20mm
Actuator Type:
Rectangular Button
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
-
Base Product Number:
SKSCL
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search SKSCLBE010 on website for other similar products.
We accept all major payment methods for all products including ET18216858. Please check your shopping cart at the time of order.
You can order Alps Alpine brand products with SKSCLBE010 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Tactile Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Black Button Tactile Switch, Single Pole Single Throw (SPST) 50 mA 0.65mm Surface Mount. You can also check on our website or by contacting our customer support team for further order details on Black Button Tactile Switch, Single Pole Single Throw (SPST) 50 mA 0.65mm Surface Mount.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18216858 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Alps Alpine" products on our website by using Enrgtech's Unique Manufacturing Part Number ET18216858.
Yes. We ship SKSCLBE010 Internationally to many countries around the world.
This is Black Button Tactile Switch Single Pole Single Throw (SPST) 50 mA 0.65mm Surface Mount manufactured by Alps Alpine. The manufacturer part number is SKSCLBE010. It has a 2.2 n of operating force. The actuator has an adorable black colour. Illumination Option no. The product is available in surface mount configuration. Moreover, the product has a nominal 12v dc voltage rating. The rated contact current is 50 ma. The contact is equipped with spst configuration. In addition, the height is 1.25mm. The product has -30 → +85°c of operating temperature range. Furthermore, the product is 3.55mm wide. Its accurate length is 3.5mm. The product carries button actuator. The actuator is a 0.65mm long. The product also provide mechanical stability with 100000cycles. It provides momentary switch operation. It has a maximum operating temperature of +85°c. Whereas, the minimum operating temperature of the product is -30°c. The given dimensions of the product include 3.5 x 3.55mm. It has a 224gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has smd (smt) tab terminal style. The product has -30°c ~ 85°c operating temperature range. The actuator is adjusted at side actuated. The product also provide mechanical stability with 100,000 cycles. The given outline of the product is 3.50mm x 2.90mm. It is shipped in tape & reel (tr) package . It is designed as a off-mom switching function. The right angle actuator length is 0.50mm. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 12vdc. It has a long 18 weeks standard lead time. The product is available in surface mount, right angle configuration. The product sksc, is a highly preferred choice for users. The product has a switching travel of 0.20mm. The product carries rectangular button actuator. Is this product illuminated? non-illuminated. Moreover, it corresponds to skscl, a base product number of the product. The product is designated with the ear99 code number.
