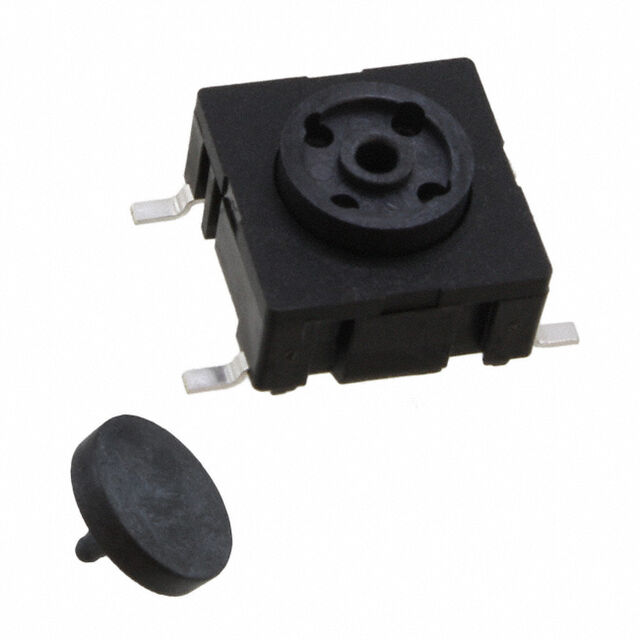

E-Switch TL6200BBF300QG

TL6200BBF300QG E-Switch
E-Switch

Product Information

Operating Force:
300gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
Gull Wing
Actuator Height off PCB, Vertical:
8.00mm
Operating Temperature:
-40°C ~ 85°C
Actuator Orientation:
Top Actuated
Mechanical Life:
10,000,000 Cycles
title:
TL6200BBF300QG
REACH Status:
REACH Unaffected
edacadModel:
TL6200BBF300QG Models
edacadModelUrl:
/en/models/4009867
Illumination Type, Color:
-
Outline:
10.10mm x 10.10mm
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 24VDC
standardLeadTime:
12 Weeks
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
Black Cap
Mounting Type:
Surface Mount
Series:
TL6200
Packaging:
Tape & Reel (TR)
Switch Travel:
1.00mm
Actuator Type:
Round Button
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
-
Base Product Number:
TL6200
ECCN:
EAR99
Checking for live stock

This is manufactured by E-Switch. The manufacturer part number is TL6200BBF300QG. It has a 300gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has gull wing terminal style. Features 8.00mm actuator vertical height off PCB. The product has -40°c ~ 85°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 10,000,000 cycles. In addition, it is reach unaffected. The given outline of the product is 10.10mm x 10.10mm. It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 24vdc. It has a long 12 weeks standard lead time. It is IP rated with ip67 - dust tight, waterproof. The splendid features of the product include black cap. The product is available in surface mount configuration. The product tl6200, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. The product has a switching travel of 1.00mm. The product carries round button actuator. Is this product illuminated? non-illuminated. Moreover, it corresponds to tl6200, a base product number of the product. The product is designated with the ear99 code number.
