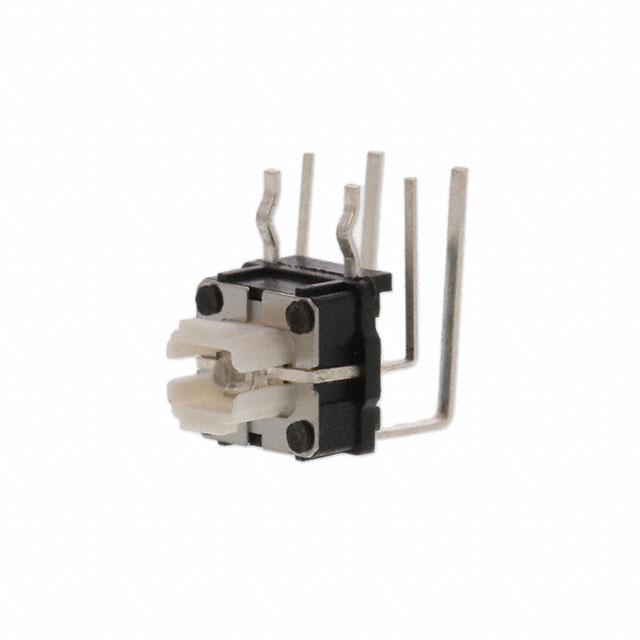

E-Switch TL1260GQNOCAP

TL1260GQNOCAP E-Switch
TL1260GQNOCAP
E-Switch

Product Information

Operating Force:
160gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
PC Pin
Actuator Height off PCB, Vertical:
-
Operating Temperature:
-20°C ~ 70°C
Actuator Orientation:
Side Actuated
Mechanical Life:
50,000 Cycles
REACH Status:
REACH Unaffected
Illumination Type, Color:
LED, Green
Outline:
7.00mm x 6.80mm
Package:
Bulk
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 12VDC
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
TL1260
Switch Travel:
0.20mm
Actuator Type:
Plunger for Cap
Illumination:
Illuminated
Illumination Voltage (Nominal):
2.3 VDC
Actuator Material:
Polybutylene Terephthalate (PBT)
Base Product Number:
TL1260
ECCN:
EAR99
Checking for live stock

This is manufactured by E-Switch. The manufacturer part number is TL1260GQNOCAP. It has a 160gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has pc pin terminal style. The product has -20°c ~ 70°c operating temperature range. The actuator is adjusted at side actuated. The product also provide mechanical stability with 50,000 cycles. In addition, it is reach unaffected. It is supplied with led, green illumination. The given outline of the product is 7.00mm x 6.80mm. It is shipped in bulk package . It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 12vdc. The product is available in through hole, right angle configuration. The product tl1260, is a highly preferred choice for users. The product has a switching travel of 0.20mm. The product carries plunger for cap actuator. Is this product illuminated? illuminated. The nominal illumination voltage of the product is 2.3 vdc. The actuator is designed from sturdy polybutylene terephthalate (pbt) material. Moreover, it corresponds to tl1260, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
TL1260 Series Datasheet(Datasheets)
pdf icon
TL1260GQNOCAP Drawing(Product Drawings)
pdf icon
E-Switch RoHS 3 Cert(Environmental Information)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search TL1260GQNOCAP on website for other similar products.
We accept all major payment methods for all products including ET13650183. Please check your shopping cart at the time of order.
You can order E-Switch brand products with TL1260GQNOCAP directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Tactile Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of E-Switch TL1260GQNOCAP. You can also check on our website or by contacting our customer support team for further order details on E-Switch TL1260GQNOCAP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13650183 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "E-Switch" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13650183.
Yes. We ship TL1260GQNOCAP Internationally to many countries around the world.
