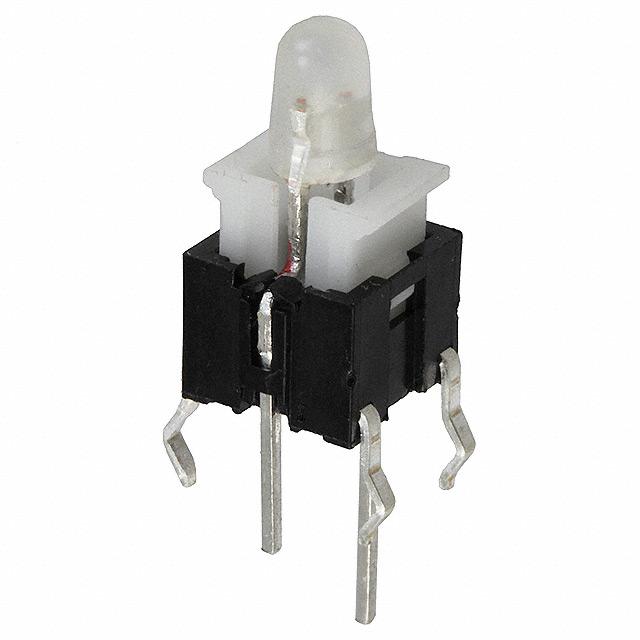

E-Switch TL1240BICOLORGREENYELLOW

TL1240BICOLORGREENYELLOW E-Switch
TL1240BICOLORGREENYELLOW
E-Switch

Product Information

Operating Force:
160gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
PC Pin
Actuator Height off PCB, Vertical:
7.20mm
Operating Temperature:
-20°C ~ 70°C
Actuator Orientation:
Top Actuated
Mechanical Life:
100,000 Cycles
REACH Status:
REACH Unaffected
Illumination Type, Color:
LED, Green/Yellow
Outline:
6.00mm x 6.00mm
Package:
Bulk
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 12VDC
standardLeadTime:
17 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
TL1240
Switch Travel:
0.25mm
Actuator Type:
-
Illumination:
Illuminated
Illumination Voltage (Nominal):
2.2, 2.1 VDC
Actuator Material:
Polybutylene Terephthalate (PBT)
Base Product Number:
TL1240
ECCN:
EAR99
Checking for live stock

This is manufactured by E-Switch. The manufacturer part number is TL1240BICOLORGREENYELLOW. It has a 160gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has pc pin terminal style. Features 7.20mm actuator vertical height off PCB. The product has -20°c ~ 70°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 100,000 cycles. In addition, it is reach unaffected. It is supplied with led, green/yellow illumination. The given outline of the product is 6.00mm x 6.00mm. It is shipped in bulk package . It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 12vdc. It has a long 17 weeks standard lead time. The product is available in through hole configuration. The product tl1240, is a highly preferred choice for users. The product has a switching travel of 0.25mm. Is this product illuminated? illuminated. The nominal illumination voltage of the product is 2.2, 2.1 vdc. The actuator is designed from sturdy polybutylene terephthalate (pbt) material. Moreover, it corresponds to tl1240, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
TL1240 Series Datasheet(Datasheets)
pdf icon
TL1240BICOLORGREENYELLOW Drawing(Product Drawings)
pdf icon
E-Switch RoHS 3 Cert(Environmental Information)
