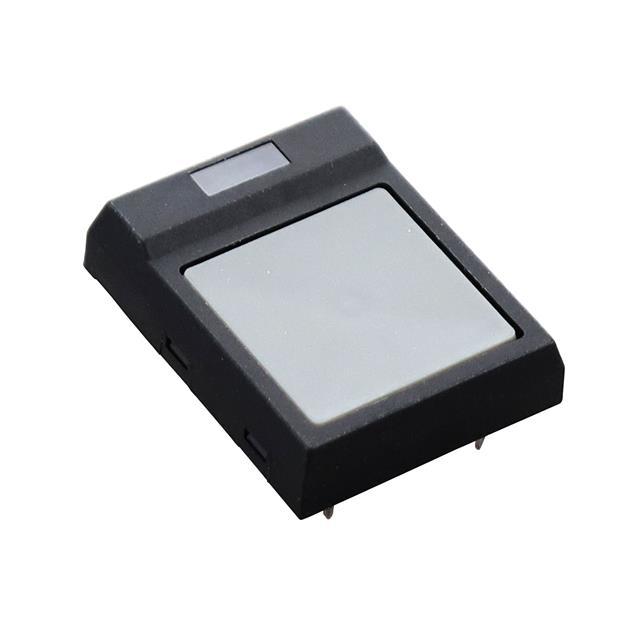

NKK Switches JF15RP1HE

JF15RP1HE NKK Switches
NKK Switches

Product Information

Operating Force:
300gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
PC Pin
Actuator Height off PCB, Vertical:
5.08mm
Operating Temperature:
-25°C ~ 70°C
Actuator Orientation:
Top Actuated
REACH Status:
REACH Unaffected
edacadModel:
JF15RP1HE Models
edacadModelUrl:
/en/models/1052446
Illumination Type, Color:
LED, Yellow
Outline:
22.80mm x 17.70mm
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 24VDC
standardLeadTime:
18 Weeks
Ingress Protection:
-
Features:
Process Sealed
Mounting Type:
Through Hole
Series:
JF
Packaging:
Tray
Actuator Type:
Square Button
Illumination:
Illuminated
Illumination Voltage (Nominal):
1.9 VDC
Base Product Number:
JF15RP1H
ECCN:
EAR99
Checking for live stock

This is manufactured by NKK Switches. The manufacturer part number is JF15RP1HE. It has a 300gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has pc pin terminal style. Features 5.08mm actuator vertical height off PCB. The product has -25°c ~ 70°c operating temperature range. The actuator is adjusted at top actuated. In addition, it is reach unaffected. It is supplied with led, yellow illumination. The given outline of the product is 22.80mm x 17.70mm. It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 24vdc. It has a long 18 weeks standard lead time. The splendid features of the product include process sealed. The product is available in through hole configuration. The product jf, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. The product carries square button actuator. Is this product illuminated? illuminated. The nominal illumination voltage of the product is 1.9 vdc. Moreover, it corresponds to jf15rp1h, a base product number of the product. The product is designated with the ear99 code number.
