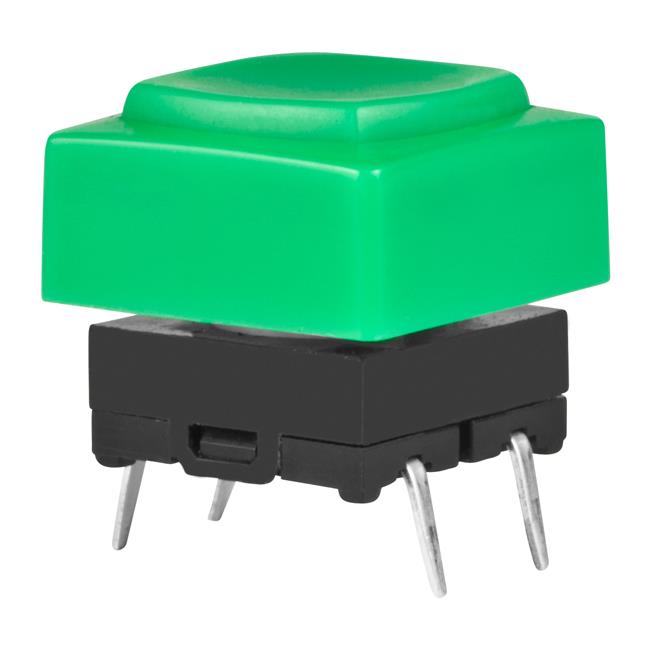

NKK Switches JB15KP-4FF

JB15KP-4FF NKK Switches
NKK Switches

Product Information

Operating Force:
176gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
PC Pin
Actuator Height off PCB, Vertical:
11.20mm
Operating Temperature:
-25°C ~ 70°C
Actuator Orientation:
Top Actuated
Mechanical Life:
5,000,000 Cycles
REACH Status:
REACH Unaffected
edacadModel:
JB15KP-4FF Models
edacadModelUrl:
/en/models/2104213
Illumination Type, Color:
-
Outline:
10.00mm x 10.00mm
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 24VDC
standardLeadTime:
18 Weeks
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
Process Sealed
Mounting Type:
Through Hole
Series:
JB
Packaging:
Box
Switch Travel:
0.25mm
Actuator Type:
Square Button
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
Polyacetal
Base Product Number:
JB15KP
ECCN:
EAR99
Checking for live stock

This is manufactured by NKK Switches. The manufacturer part number is JB15KP-4FF. It has a 176gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has pc pin terminal style. Features 11.20mm actuator vertical height off PCB. The product has -25°c ~ 70°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 5,000,000 cycles. In addition, it is reach unaffected. The given outline of the product is 10.00mm x 10.00mm. It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 24vdc. It has a long 18 weeks standard lead time. It is IP rated with ip67 - dust tight, waterproof. The splendid features of the product include process sealed. The product is available in through hole configuration. The product jb, is a highly preferred choice for users. In addition, box is the available packaging type of the product. The product has a switching travel of 0.25mm. The product carries square button actuator. Is this product illuminated? non-illuminated. The actuator is designed from sturdy polyacetal material. Moreover, it corresponds to jb15kp, a base product number of the product. The product is designated with the ear99 code number.
