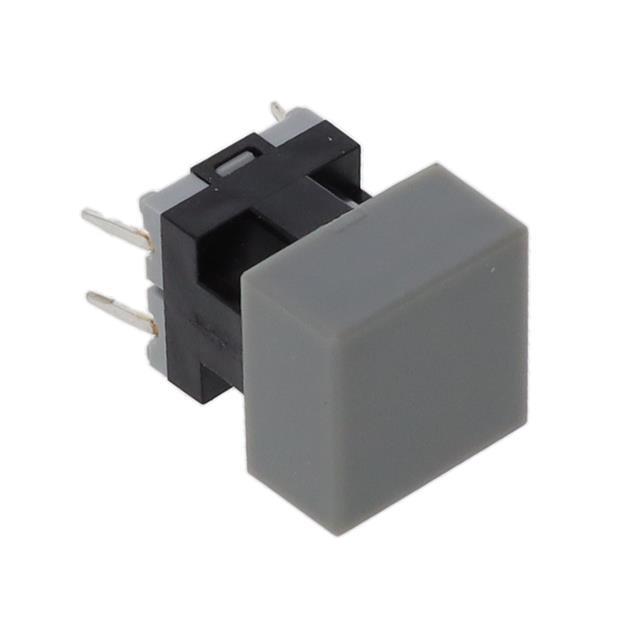

NKK Switches JB15HANP2/H7E-2H

JB15HANP2-H7E-2H NKK Switches JB15HANP2/H7E-2H
NKK Switches

Product Information

Operating Force:
265gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
PC Pin
Actuator Height off PCB, Vertical:
14.70mm
Operating Temperature:
-25°C ~ 70°C
Actuator Orientation:
Top Actuated
REACH Status:
REACH Unaffected
Illumination Type, Color:
-
Outline:
10.00mm x 10.00mm
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.125A @ 24VDC
standardLeadTime:
30 Weeks
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
Process Sealed
Mounting Type:
Through Hole
Series:
JB
Packaging:
Box
Actuator Type:
Square Button
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Base Product Number:
JB15HAN
ECCN:
EAR99
Checking for live stock

This is manufactured by NKK Switches. The manufacturer part number is JB15HANP2/H7E-2H. It has a 265gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has pc pin terminal style. Features 14.70mm actuator vertical height off PCB. The product has -25°c ~ 70°c operating temperature range. The actuator is adjusted at top actuated. In addition, it is reach unaffected. The given outline of the product is 10.00mm x 10.00mm. It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.125a @ 24vdc. It has a long 30 weeks standard lead time. It is IP rated with ip67 - dust tight, waterproof. The splendid features of the product include process sealed. The product is available in through hole configuration. The product jb, is a highly preferred choice for users. In addition, box is the available packaging type of the product. The product carries square button actuator. Is this product illuminated? non-illuminated. Moreover, it corresponds to jb15han, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
JB Series Low Profile Tactiles(Datasheets)
pdf icon
RoHS Cert - Switches & Pushbuttons(Environmental Information)
pdf icon
NKK Switches PFOS & PFOA Free Cert(Environmental Information)
pdf icon
NKK Switches ODC Cert(Environmental Information)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search JB15HANP2/H7E-2H on website for other similar products.
We accept all major payment methods for all products including ET13462163. Please check your shopping cart at the time of order.
You can order NKK Switches brand products with JB15HANP2/H7E-2H directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Tactile Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of NKK Switches JB15HANP2/H7E-2H. You can also check on our website or by contacting our customer support team for further order details on NKK Switches JB15HANP2/H7E-2H.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13462163 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "NKK Switches" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13462163.
Yes. We ship JB15HANP2/H7E-2H Internationally to many countries around the world.
