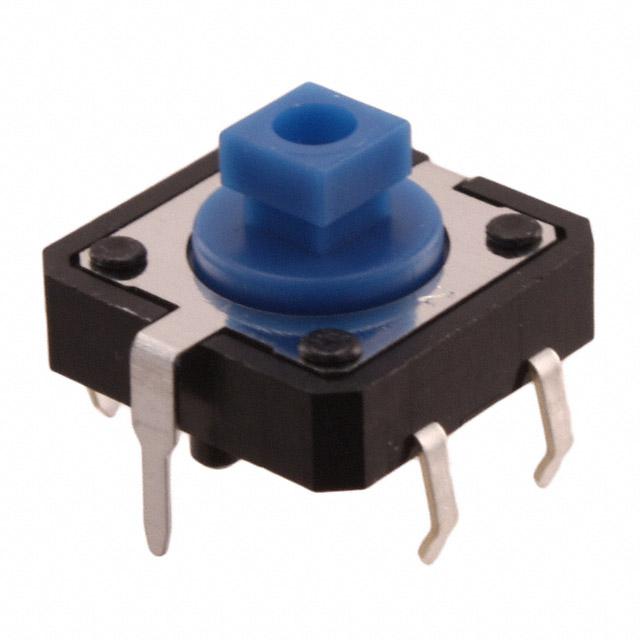

Omron Electronics Inc-EMC Div B3F-5150

B3F-5150 Omron Electronics Inc-EMC Div
Omron Electronics Inc-EMC Div

Product Information

Operating Force:
130gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
PC Pin
Actuator Height off PCB, Vertical:
7.30mm
Operating Temperature:
-25°C ~ 70°C
Actuator Orientation:
Top Actuated
Mechanical Life:
10,000,000 Cycles
REACH Status:
REACH Unaffected
edacadModel:
B3F-5150 Models
edacadModelUrl:
/en/models/249056
Illumination Type, Color:
-
Outline:
12.00mm x 12.00mm
Package:
Bag
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
Not Applicable
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 24VDC
standardLeadTime:
14 Weeks
Ingress Protection:
-
Features:
Grounding Pin
Mounting Type:
Through Hole
Series:
B3F
Switch Travel:
0.30mm
Actuator Type:
Plunger for Cap
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
-
Base Product Number:
B3F
ECCN:
EAR99
Checking for live stock

This is manufactured by Omron Electronics Inc-EMC Div. The manufacturer part number is B3F-5150. It has a 130gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has pc pin terminal style. Features 7.30mm actuator vertical height off PCB. The product has -25°c ~ 70°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 10,000,000 cycles. In addition, it is reach unaffected. The given outline of the product is 12.00mm x 12.00mm. It is shipped in bag package . It is designed as a off-mom switching function. Its typical moisture sensitivity level is not applicable. It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 24vdc. It has a long 14 weeks standard lead time. The splendid features of the product include grounding pin. The product is available in through hole configuration. The product b3f, is a highly preferred choice for users. The product has a switching travel of 0.30mm. The product carries plunger for cap actuator. Is this product illuminated? non-illuminated. Moreover, it corresponds to b3f, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
B3F (12x12) Plunger June/2010(PCN Design/Specification)
pdf icon
B3F Series Datasheet(Datasheets)
pdf icon
Basics of Tactile Switches(Other Related Documents)
pdf icon
How to Read Date Codes(Other Related Documents)
pdf icon
Tactile Switch Safety Precautions(Other Related Documents)
