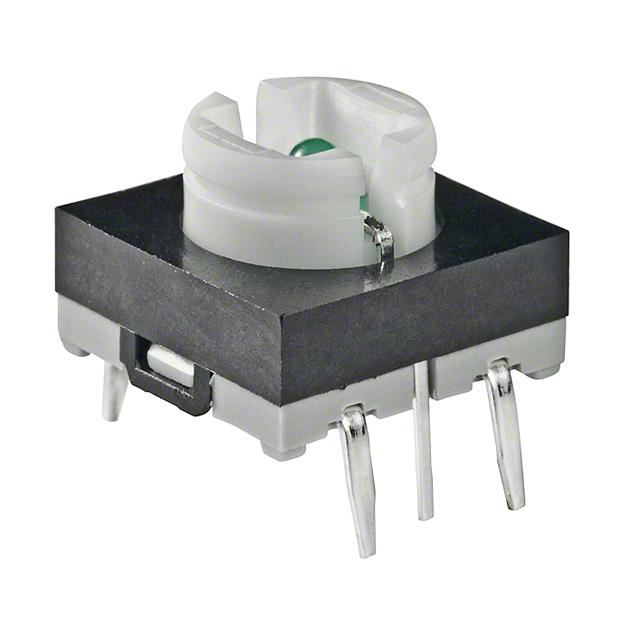

NKK Switches JB15HLPF

JB15HLPF NKK Switches
JB15HLPF
NKK Switches

Product Information

Switch Operation:
Off-On (Momentary)
Operating Force:
2.65 N
Actuator Length:
3mm
Dimensions:
12.3 x 12.3mm
Mounting Type:
PCB
Voltage Rating:
24V dc
Contact Current Rating:
125 mA
Minimum Operating Temperature:
-25°C
Operating Temperature Range:
-25 → +70°C
Contact Configuration:
Single Pole Single Throw (SPST)
Width:
12.3mm
Length:
12.3mm
Actuator Type:
Short
Contact Material:
Brass (Stationary), Stainless Steel (Movable)
Maximum Operating Temperature:
+70°C
Terminal Type:
PC Pin
Illuminated:
Yes
Operating Force:
265gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
PC Pin
Actuator Height off PCB, Vertical:
-
Operating Temperature:
-25°C ~ 70°C
Actuator Orientation:
Top Actuated
Mechanical Life:
1,000,000 Cycles
REACH Status:
REACH Unaffected
Illumination Type, Color:
LED, Green
Outline:
10.00mm x 10.00mm
Package:
Tray
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.125A @ 24VDC
standardLeadTime:
30 Weeks
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
Process Sealed
Mounting Type:
Through Hole
Series:
JB
Switch Travel:
0.30mm
Actuator Type:
Plunger for Cap
Illumination:
Illuminated
Illumination Voltage (Nominal):
2.1 VDC
Actuator Material:
-
Base Product Number:
-
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by NKK Switches. The manufacturer part number is JB15HLPF. It provides off-on (momentary) switch operation. It has a 2.65 n of operating force. The actuator is a 3mm long. The given dimensions of the product include 12.3 x 12.3mm. The product is available in pcb configuration. Moreover, the product has a nominal 24v dc voltage rating. The rated contact current is 125 ma. Whereas, the minimum operating temperature of the product is -25°c. The product has -25 → +70°c of operating temperature range. The contact is equipped with single pole single throw (spst) configuration. Furthermore, the product is 12.3mm wide. Its accurate length is 12.3mm. The product carries short actuator. The product is made from sturdy brass (stationary), stainless steel (movable) materials. It has a maximum operating temperature of +70°c. The terminal is a pc pin type. Illumination Option yes. It has a 265gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has pc pin terminal style. The product has -25°c ~ 70°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 1,000,000 cycles. In addition, it is reach unaffected. It is supplied with led, green illumination. The given outline of the product is 10.00mm x 10.00mm. It is shipped in tray package . It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.125a @ 24vdc. It has a long 30 weeks standard lead time. It is IP rated with ip67 - dust tight, waterproof. The splendid features of the product include process sealed. The product is available in through hole configuration. The product jb, is a highly preferred choice for users. The product has a switching travel of 0.30mm. The product carries plunger for cap actuator. Is this product illuminated? illuminated. The nominal illumination voltage of the product is 2.1 vdc. The product is designated with the ear99 code number.
