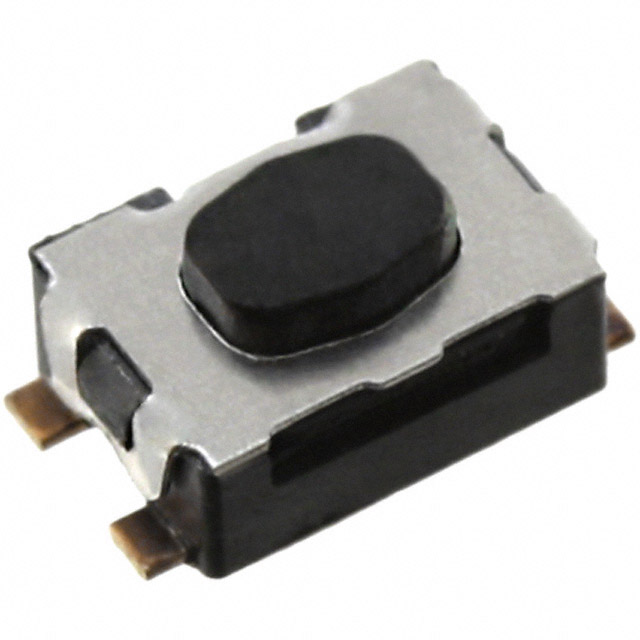

C&K KMR241NG LFS

KMR241NG-LFS C&K KMR241NG LFS
KMR241NG LFS
KMR241NG LFS
C&K

Product Information

Operating Force:
4 N
Actuator Colour:
Black
Dimensions:
4.2 x 2.8mm
Mounting Type:
Surface Mount
IP Rating:
IP40
Contact Current Rating:
50 mA
Minimum Operating Temperature:
-40°C
Voltage Rating:
32V dc
Contact Configuration:
Single Pole Single Throw (SPST)
Width:
2.8mm
Length:
4.2mm
Actuator Type:
Button
Actuator Length:
2.11mm
Operating Temperature Range:
-40 → +85°C
Switch Operation:
Momentary
Maximum Operating Temperature:
+85°C
Terminal Type:
Gull Wing
Contact Material:
Silver Plated
Operating Force:
400gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
Gull Wing
Actuator Height off PCB, Vertical:
1.90mm
Operating Temperature:
-40°C ~ 85°C
Actuator Orientation:
Top Actuated
Mechanical Life:
100,000 Cycles
title:
KMR241NG LFS
REACH Status:
REACH Unaffected
Illumination Type, Color:
-
Outline:
4.60mm x 2.80mm
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 32VDC
standardLeadTime:
8 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Series:
KMR2
Packaging:
Tape & Reel (TR)
Switch Travel:
0.30mm
Actuator Type:
Standard
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
-
Base Product Number:
KMR241
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by C&K. The manufacturer part number is KMR241NG LFS. It has a 4 n of operating force. The actuator has an adorable black colour. The given dimensions of the product include 4.2 x 2.8mm. The product is available in surface mount configuration. It is IP rated with ip40. The rated contact current is 50 ma. Whereas, the minimum operating temperature of the product is -40°c. Moreover, the product has a nominal 32v dc voltage rating. The contact is equipped with single pole single throw (spst) configuration. Furthermore, the product is 2.8mm wide. Its accurate length is 4.2mm. The product carries button actuator. The actuator is a 2.11mm long. The product has -40 → +85°c of operating temperature range. It provides momentary switch operation. It has a maximum operating temperature of +85°c. The terminal is a gull wing type. The product is made from sturdy silver plated materials. It has a 400gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has gull wing terminal style. Features 1.90mm actuator vertical height off PCB. The product has -40°c ~ 85°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 100,000 cycles. In addition, it is reach unaffected. The given outline of the product is 4.60mm x 2.80mm. It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 32vdc. It has a long 8 weeks standard lead time. The product kmr2, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. The product has a switching travel of 0.30mm. The product carries standard actuator. Is this product illuminated? non-illuminated. Moreover, it corresponds to kmr241, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
C&K Tactile Switches Technical data sheet(Technical Reference)
pdf icon
C&K RoHS/REACH(Environmental Information)
pdf icon
KMR Adhesive Surface/Housing Rev.B 23/Apr/2014(PCN Design/Specification)
pdf icon
KMR Series 05/Nov/2014(PCN Design/Specification)
pdf icon
KMR 2 Series Micro Mini Top Actuated Datasheet(Datasheets)
