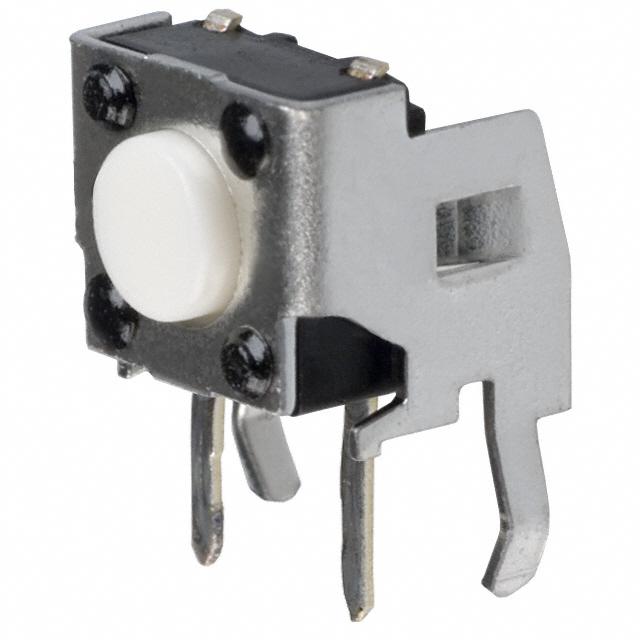

Panasonic Electronic Components EVQ-PF103M
Product Information
Operating Force:
130gf
HTSUS:
8536.50.9031
RoHS Status:
RoHS Compliant
Termination Style:
PC Pin
Operating Temperature:
-20°C ~ 70°C
Actuator Orientation:
Side Actuated
Actuator Height off PCB, Vertical:
-
edacadModel:
EVQ-PF103M Models
edacadModelUrl:
/en/models/286366
Illumination Type, Color:
-
Outline:
7.50mm x 7.10mm
Switch Function:
Off-Mom
Actuator Length, Right Angle:
3.15mm
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.02A @ 15VDC
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
EVQPF
Packaging:
Bulk
Actuator Type:
Standard
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Base Product Number:
EVQ-PF
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search EVQ-PF103M on website for other similar products.
We accept all major payment methods for all products including ET11433288. Please check your shopping cart at the time of order.
You can order Panasonic Electronic Components brand products with EVQ-PF103M directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Tactile Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Panasonic Electronic Components EVQ-PF103M. You can also check on our website or by contacting our customer support team for further order details on Panasonic Electronic Components EVQ-PF103M.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11433288 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Panasonic Electronic Components" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11433288.
Yes. We ship EVQ-PF103M Internationally to many countries around the world.
This is manufactured by Panasonic Electronic Components. The manufacturer part number is EVQ-PF103M. It has a 130gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs compliant. Moreover, it has pc pin terminal style. The product has -20°c ~ 70°c operating temperature range. The actuator is adjusted at side actuated. The given outline of the product is 7.50mm x 7.10mm. It is designed as a off-mom switching function. The right angle actuator length is 3.15mm. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.02a @ 15vdc. The product is available in through hole, right angle configuration. The product evqpf, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. The product carries standard actuator. Is this product illuminated? non-illuminated. Moreover, it corresponds to evq-pf, a base product number of the product. The product is designated with the ear99 code number.
