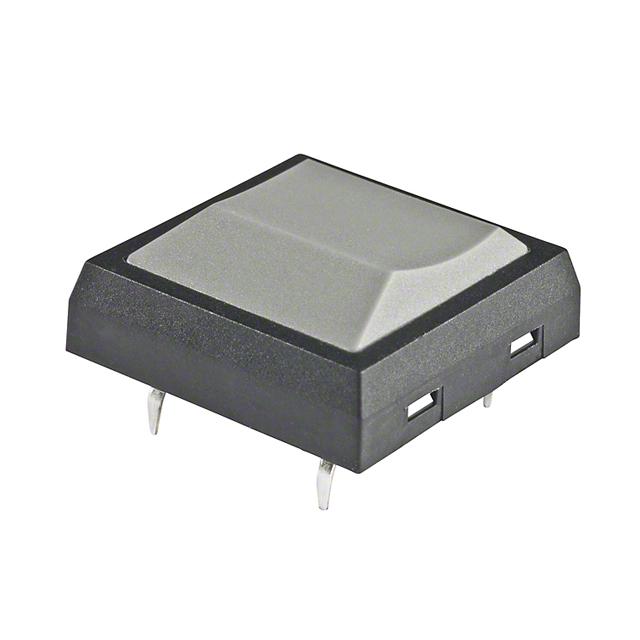

NKK Switches JF15SP3H
Product Information
Operating Force:
196gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
PC Pin
Actuator Height off PCB, Vertical:
6.78mm
Operating Temperature:
-25°C ~ 85°C
Actuator Orientation:
Top Actuated
Mechanical Life:
500,000 Cycles
REACH Status:
REACH Unaffected
edacadModel:
JF15SP3H Models
edacadModelUrl:
/en/models/1051277
Illumination Type, Color:
-
Outline:
17.70mm x 17.70mm
Package:
Tray
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 24VDC
standardLeadTime:
18 Weeks
Ingress Protection:
-
Features:
Process Sealed
Mounting Type:
Through Hole
Series:
JF
Switch Travel:
0.80mm
Actuator Type:
Square Button
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
Polyamide (PA), Nylon
Base Product Number:
JF15SP
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search JF15SP3H on website for other similar products.
We accept all major payment methods for all products including ET11259500. Please check your shopping cart at the time of order.
You can order NKK Switches brand products with JF15SP3H directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Tactile Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of NKK Switches JF15SP3H. You can also check on our website or by contacting our customer support team for further order details on NKK Switches JF15SP3H.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11259500 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "NKK Switches" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11259500.
Yes. We ship JF15SP3H Internationally to many countries around the world.
This is manufactured by NKK Switches. The manufacturer part number is JF15SP3H. It has a 196gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has pc pin terminal style. Features 6.78mm actuator vertical height off PCB. The product has -25°c ~ 85°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 500,000 cycles. In addition, it is reach unaffected. The given outline of the product is 17.70mm x 17.70mm. It is shipped in tray package . It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 24vdc. It has a long 18 weeks standard lead time. The splendid features of the product include process sealed. The product is available in through hole configuration. The product jf, is a highly preferred choice for users. The product has a switching travel of 0.80mm. The product carries square button actuator. Is this product illuminated? non-illuminated. The actuator is designed from sturdy polyamide (pa), nylon material. Moreover, it corresponds to jf15sp, a base product number of the product. The product is designated with the ear99 code number.
