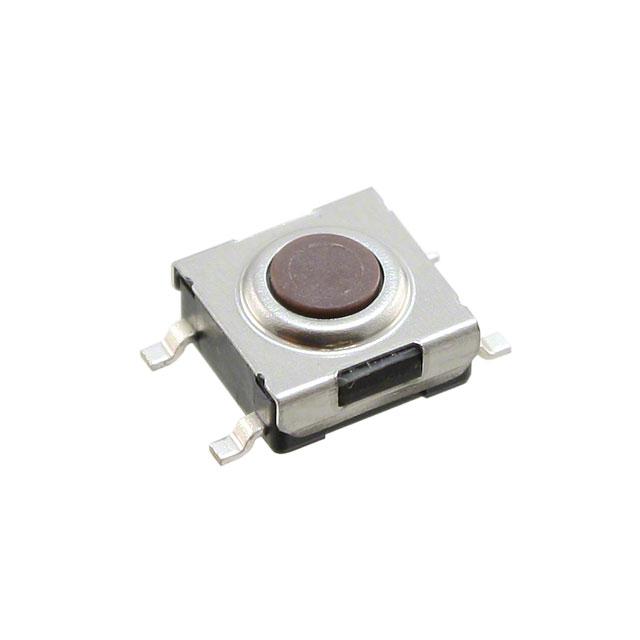

NKK Switches CB315FP-R
Product Information
Operating Force:
157gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
Gull Wing
Actuator Height off PCB, Vertical:
3.10mm
Operating Temperature:
-25°C ~ 70°C
Actuator Orientation:
Top Actuated
Mechanical Life:
100,000 Cycles
REACH Status:
REACH Unaffected
edacadModel:
CB315FP-R Models
edacadModelUrl:
/en/models/1051201
Illumination Type, Color:
-
Outline:
6.20mm x 6.20mm
Package:
Tape & Reel (TR)
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 24VDC
standardLeadTime:
18 Weeks
Ingress Protection:
-
Features:
Sealed - Fully
Mounting Type:
Surface Mount
Series:
CB3
Switch Travel:
0.25mm
Actuator Type:
Standard
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
Polyamide (PA), Nylon, Glass Filled
Base Product Number:
CB315FP
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search CB315FP-R on website for other similar products.
We accept all major payment methods for all products including ET11214477. Please check your shopping cart at the time of order.
You can order NKK Switches brand products with CB315FP-R directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Tactile Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of NKK Switches CB315FP-R. You can also check on our website or by contacting our customer support team for further order details on NKK Switches CB315FP-R.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11214477 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "NKK Switches" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11214477.
Yes. We ship CB315FP-R Internationally to many countries around the world.
This is manufactured by NKK Switches. The manufacturer part number is CB315FP-R. It has a 157gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has gull wing terminal style. Features 3.10mm actuator vertical height off PCB. The product has -25°c ~ 70°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 100,000 cycles. In addition, it is reach unaffected. The given outline of the product is 6.20mm x 6.20mm. It is shipped in tape & reel (tr) package . It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 24vdc. It has a long 18 weeks standard lead time. The splendid features of the product include sealed - fully. The product is available in surface mount configuration. The product cb3, is a highly preferred choice for users. The product has a switching travel of 0.25mm. The product carries standard actuator. Is this product illuminated? non-illuminated. The actuator is designed from sturdy polyamide (pa), nylon, glass filled material. Moreover, it corresponds to cb315fp, a base product number of the product. The product is designated with the ear99 code number.
