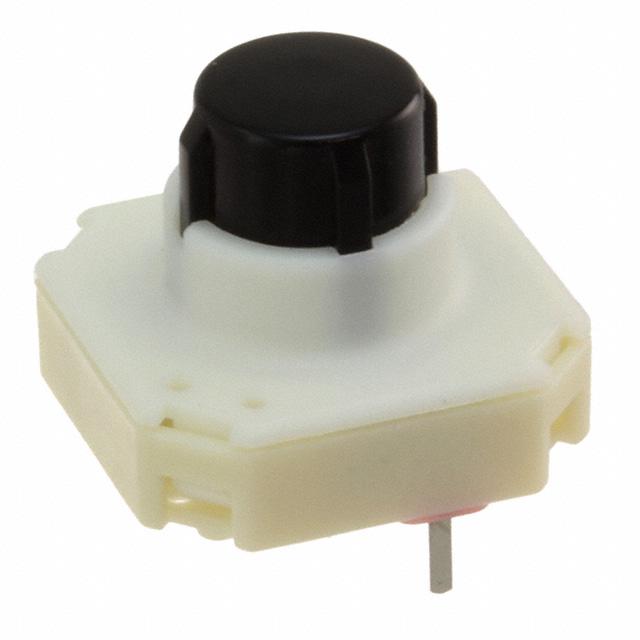

RAFI USA 3.14100.8010000

3-14100-8010000 RAFI USA 3.14100.8010000
RAFI USA

Product Information

Operating Force:
296gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
PC Pin
Operating Temperature:
-25°C ~ 70°C
Actuator Orientation:
Top Actuated
Mechanical Life:
1,000,000 Cycles
Actuator Height off PCB, Vertical:
12.50mm
Illumination Type, Color:
-
Outline:
15.00mm x 15.00mm
Package:
Box
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.1A @ 35VAC/DC
standardLeadTime:
10 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
RF15R
Switch Travel:
0.50mm
Actuator Type:
Round Button
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
-
Base Product Number:
3.14100
ECCN:
EAR99
Checking for live stock

This is manufactured by RAFI USA. The manufacturer part number is 3.14100.8010000. It has a 296gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has pc pin terminal style. The product has -25°c ~ 70°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 1,000,000 cycles. Features 12.50mm actuator vertical height off PCB. The given outline of the product is 15.00mm x 15.00mm. It is shipped in box package . It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.1a @ 35vac/dc. It has a long 10 weeks standard lead time. The product is available in through hole configuration. The product rf15r, is a highly preferred choice for users. The product has a switching travel of 0.50mm. The product carries round button actuator. Is this product illuminated? non-illuminated. Moreover, it corresponds to 3.14100, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
3.14100.8010000 Datasheet(Datasheets)
pdf icon
RF15 Datasheet(Datasheets)
