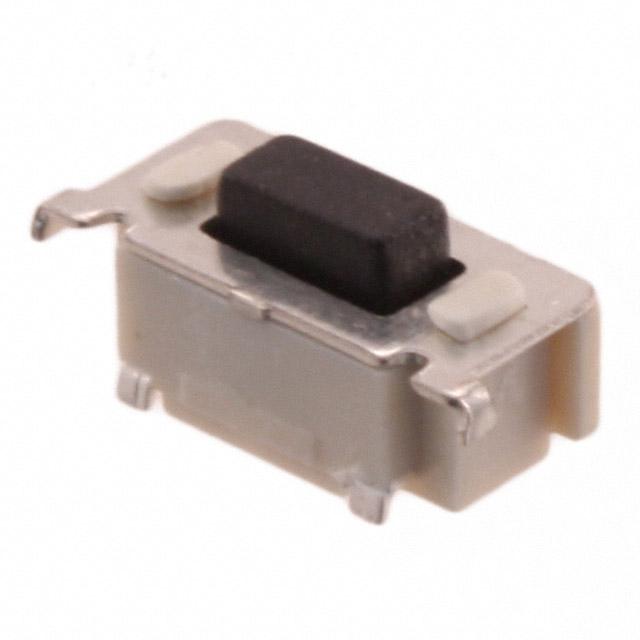

E-Switch TL3330AF260QG

TL3330AF260QG E-Switch
TL3330AF260QG
E-Switch

Product Information

Operating Force:
260gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
Gull Wing
Actuator Height off PCB, Vertical:
-
Operating Temperature:
-30°C ~ 70°C
Actuator Orientation:
Side Actuated
Mechanical Life:
30,000 Cycles
title:
TL3330AF260QG
REACH Status:
REACH Unaffected
edacadModel:
TL3330AF260QG Models
edacadModelUrl:
/en/models/1426836
Illumination Type, Color:
-
Outline:
7.80mm x 2.50mm
Switch Function:
Off-Mom
Actuator Length, Right Angle:
3.50mm
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 12VDC
standardLeadTime:
15 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount, Right Angle
Series:
TL3330
Packaging:
Tape & Reel (TR)
Switch Travel:
0.25mm
Actuator Type:
Rectangular Button
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
Polyamide (PA), Nylon
Base Product Number:
TL3330
ECCN:
EAR99
Checking for live stock

This is manufactured by E-Switch. The manufacturer part number is TL3330AF260QG. It has a 260gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has gull wing terminal style. The product has -30°c ~ 70°c operating temperature range. The actuator is adjusted at side actuated. The product also provide mechanical stability with 30,000 cycles. In addition, it is reach unaffected. The given outline of the product is 7.80mm x 2.50mm. It is designed as a off-mom switching function. The right angle actuator length is 3.50mm. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 12vdc. It has a long 15 weeks standard lead time. The product is available in surface mount, right angle configuration. The product tl3330, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. The product has a switching travel of 0.25mm. The product carries rectangular button actuator. Is this product illuminated? non-illuminated. The actuator is designed from sturdy polyamide (pa), nylon material. Moreover, it corresponds to tl3330, a base product number of the product. The product is designated with the ear99 code number.
