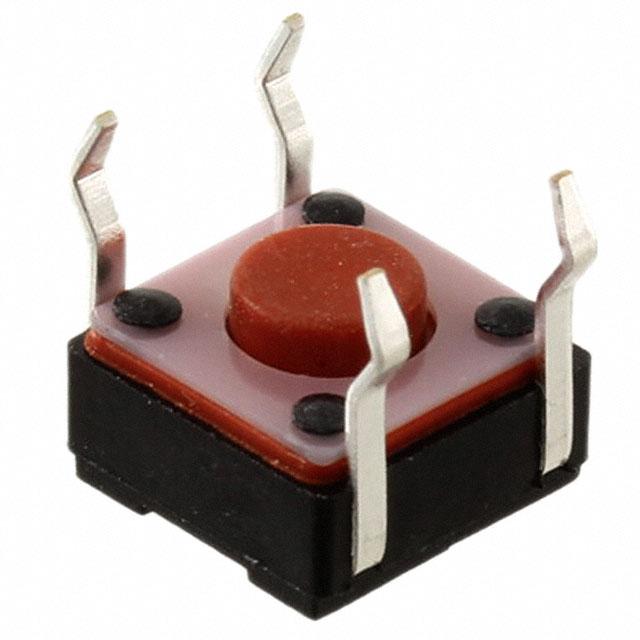

E-Switch RT1105AF160Q

RT1105AF160Q E-Switch
RT1105AF160Q
E-Switch

Product Information

Operating Force:
160gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
PC Pin
Actuator Height off PCB, Vertical:
4.40mm
Operating Temperature:
-20°C ~ 85°C
Actuator Orientation:
Top Actuated
Mechanical Life:
-
title:
RT1105AF160Q
REACH Status:
REACH Unaffected
edacadModel:
RT1105AF160Q Models
edacadModelUrl:
/en/models/3778152
Illumination Type, Color:
-
Outline:
6.80mm x 6.80mm
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 12VDC
Ingress Protection:
-
Features:
Red Actuator
Mounting Type:
Through Hole, Reverse
Series:
RT1105
Packaging:
Bulk
Switch Travel:
0.25mm
Actuator Type:
Standard
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
-
Base Product Number:
RT1105
ECCN:
EAR99
Checking for live stock

This is manufactured by E-Switch. The manufacturer part number is RT1105AF160Q. It has a 160gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has pc pin terminal style. Features 4.40mm actuator vertical height off PCB. The product has -20°c ~ 85°c operating temperature range. The actuator is adjusted at top actuated. In addition, it is reach unaffected. The given outline of the product is 6.80mm x 6.80mm. It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 12vdc. The splendid features of the product include red actuator. The product is available in through hole, reverse configuration. The product rt1105, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. The product has a switching travel of 0.25mm. The product carries standard actuator. Is this product illuminated? non-illuminated. Moreover, it corresponds to rt1105, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
E-Switch RoHS 3 Cert(Environmental Information)
pdf icon
RT1105 Series Datasheet(Datasheets)
pdf icon
RT1105AF160Q Drawing(Product Drawings)
