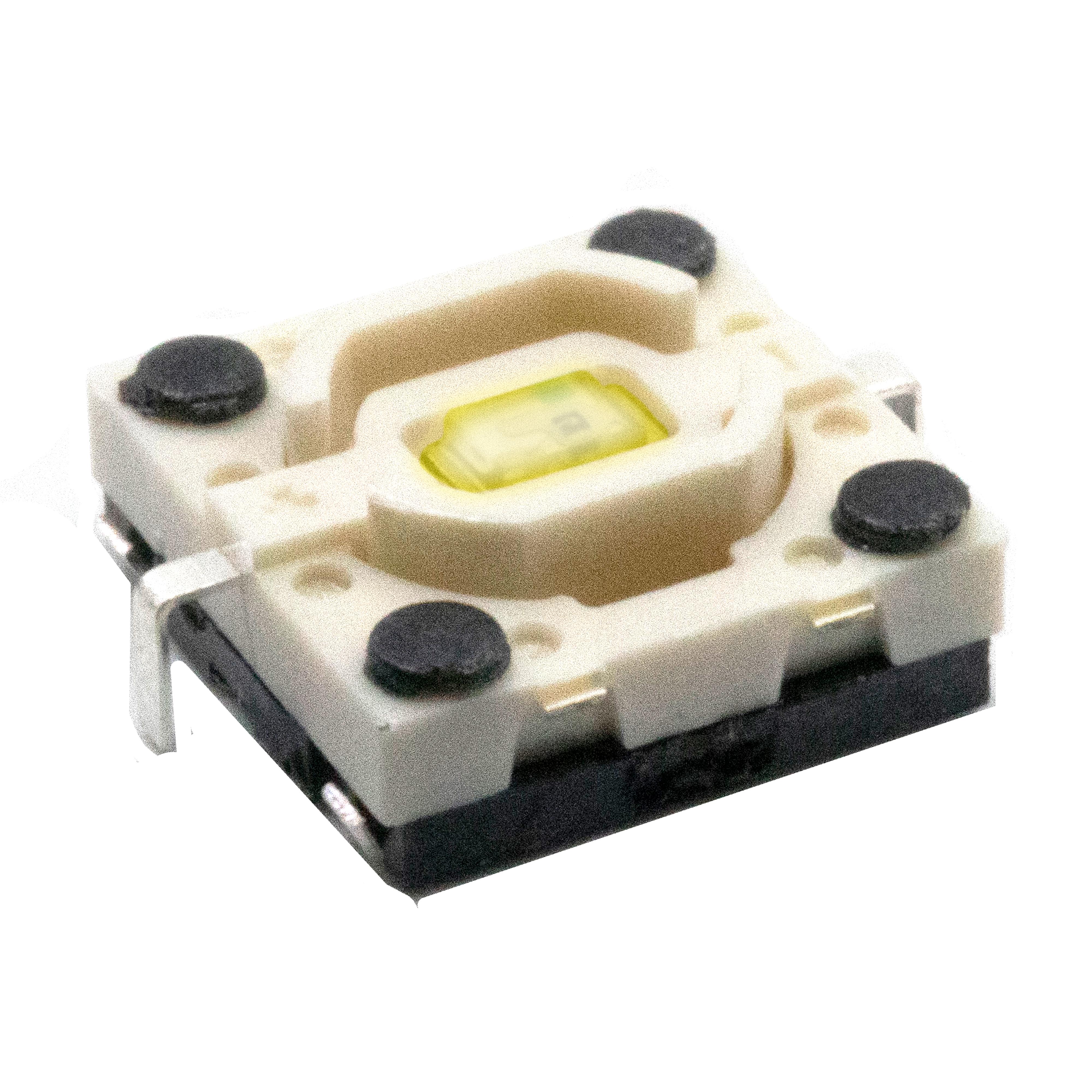

E-Switch TL3215AF160YQ
Product Information
Operating Force:
160gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
SMD (SMT) Tab
Actuator Height off PCB, Vertical:
2.00mm
Operating Temperature:
-40°C ~ 85°C
Actuator Orientation:
Top Actuated
Mechanical Life:
1,000,000 Cycles
REACH Status:
REACH Unaffected
edacadModel:
TL3215AF160YQ Models
edacadModelUrl:
/en/models/5181953
Illumination Type, Color:
LED, Yellow
Outline:
4.90mm x 4.90mm
Package:
Tape & Reel (TR)
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
2 (1 Year)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 12VDC
standardLeadTime:
13 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Series:
TL3215
Switch Travel:
0.25mm
Actuator Type:
Plunger for Cap
Illumination:
Illuminated
Illumination Voltage (Nominal):
2.05 VDC
Actuator Material:
-
Base Product Number:
TL3215
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search TL3215AF160YQ on website for other similar products.
We accept all major payment methods for all products including ET10938554. Please check your shopping cart at the time of order.
You can order E-Switch brand products with TL3215AF160YQ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Tactile Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of E-Switch TL3215AF160YQ. You can also check on our website or by contacting our customer support team for further order details on E-Switch TL3215AF160YQ.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET10938554 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "E-Switch" products on our website by using Enrgtech's Unique Manufacturing Part Number ET10938554.
Yes. We ship TL3215AF160YQ Internationally to many countries around the world.
This is manufactured by E-Switch. The manufacturer part number is TL3215AF160YQ. It has a 160gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has smd (smt) tab terminal style. Features 2.00mm actuator vertical height off PCB. The product has -40°c ~ 85°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 1,000,000 cycles. In addition, it is reach unaffected. It is supplied with led, yellow illumination. The given outline of the product is 4.90mm x 4.90mm. It is shipped in tape & reel (tr) package . It is designed as a off-mom switching function. Its typical moisture sensitivity level is 2 (1 year). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 12vdc. It has a long 13 weeks standard lead time. The product is available in surface mount configuration. The product tl3215, is a highly preferred choice for users. The product has a switching travel of 0.25mm. The product carries plunger for cap actuator. Is this product illuminated? illuminated. The nominal illumination voltage of the product is 2.05 vdc. Moreover, it corresponds to tl3215, a base product number of the product. The product is designated with the ear99 code number.
