Push-Pull Gate Drive Transformer, 5V, 23V, 86μH

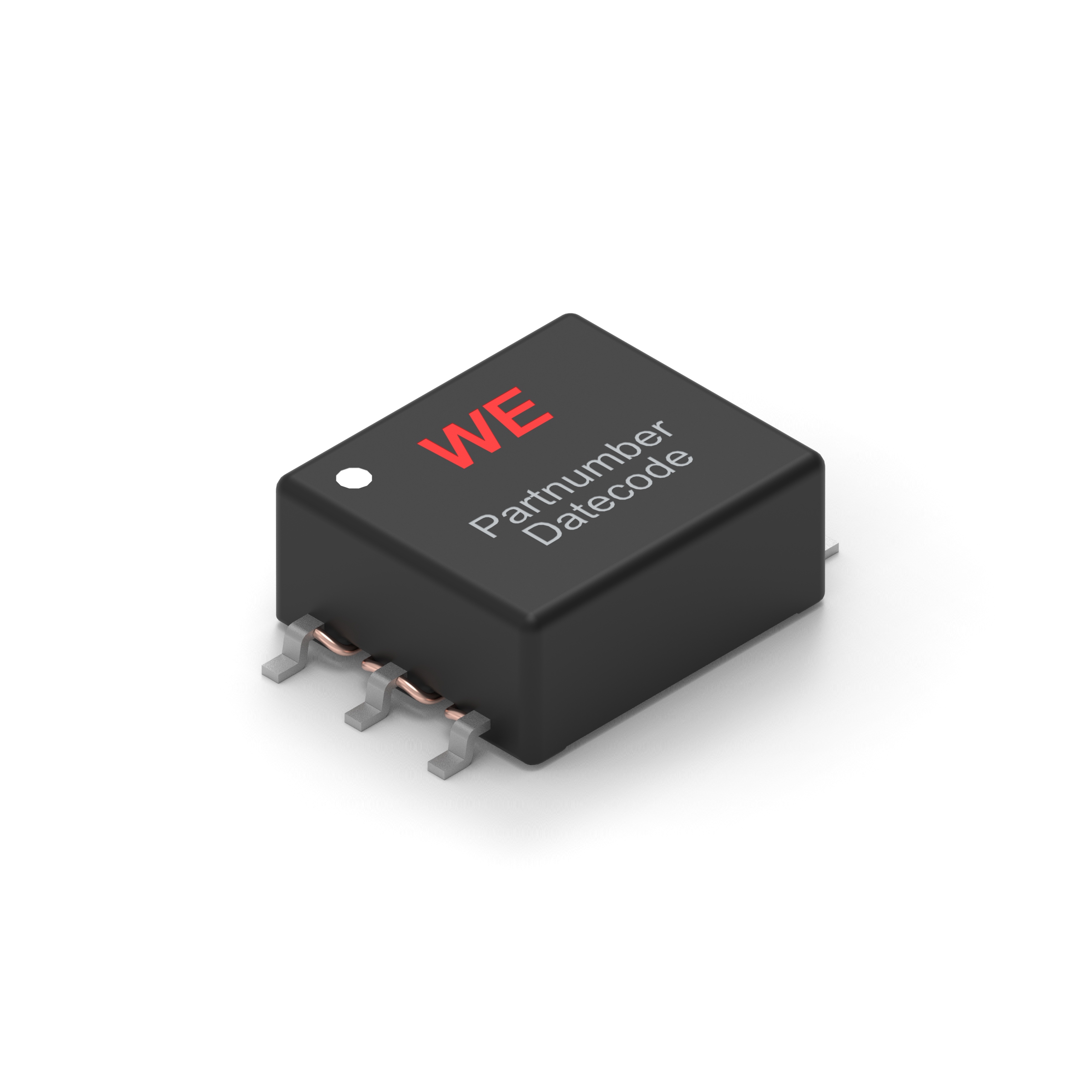

78931812523 Push-Pull Gate Drive Transformer, 5V, 23V, 86μH
78931812523 Push-Pull Gate Drive Transformer, 5V, 23V, 86μH
Wurth Elektronik

Product Information

Inductance:
86 μH
Primary Voltage:
5 V
Leakage Inductance:
300nH
Secondary Voltage:
23 V
Standards/Approvals:
RoHS
Turns Ratio:
1:4.75
Product Type:
Gate Drive Transformer
Maximum Operating Temperature:
125°C
Minimum Operating Temperature:
-40°C
Mount Type:
Surface
RoHs Compliant
Checking for live stock

This is Push-Pull Gate Drive Transformer 5V 23V 86μH manufactured by Wurth Elektronik. The manufacturer part number is 78931812523. The product has a 86 μh inductance value. It has about 300nh leakage inductance . It has 1:4.75 turns ratio . gate drive transformer is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 125°c. Whereas, the minimum operating temperature of the product is -40°c. It has a surface type mount .

pdf icon
Datasheet - 78931812523(Technical Reference)
