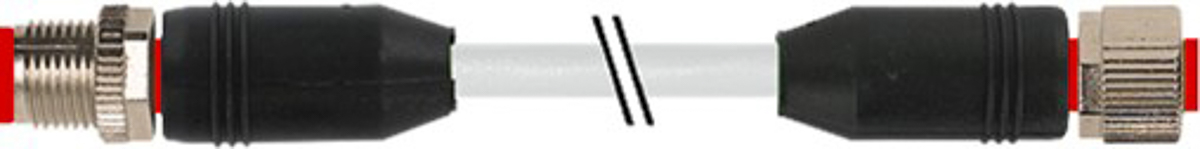

This is Industrial Automation Cable Assembly With an 8 Pole Male M12 Male and 8 Pole Angled Female M12 Female 2 A manufactured by RS Pro. The manufacturer part number is 174-7884. Features 24 awg - American Wire Gauge. The product has a current rating of 2 a. Additionally, it is oil resistant yes . The product consists of 8 cores. Additionally, its connector 2 housing is of male gender . Its outer diameter is 15mm. The product complies with all safety standards, such as clus certified, csa, culus, din vde 0298-4, en 60529, iec 60664-1, ul. Moreover, this cable has a round shape. It is IP rated with ip65, ip66k, ip67. Moreover, the product is unshielded . The product has -25 → +85 °c of operating temperature range. It has a maximum operating temperature of +85°c. Moreover, the product has a nominal 30 v ac/dc voltage rating. The connector 1 has a straight orientation. It bears 10 x 15 mm of minimum bend radius. The product has a flame retardant fire behaviour. This connector 1 is a female. Its accurate length is 2m. The sheath is constructed from durable and adorable pur material. In addition, its connector 2 orientation is straight . Connector 2 is a male connector. On the other hand, the connector 2 has 8 contacts. The conductor is made from copper material. On the other hand, the gender of connector 1's housing is female. There are 8 contacts on connector 1. The sheath has an adorable grey colour. The product has 0.25 mm² cross section area. Whereas, the minimum operating temperature of the product is -25°c. While the Connector 2 is m12. Connector 1 is m12. It has a robust pp insulation material.
For more information please check the datasheets.
