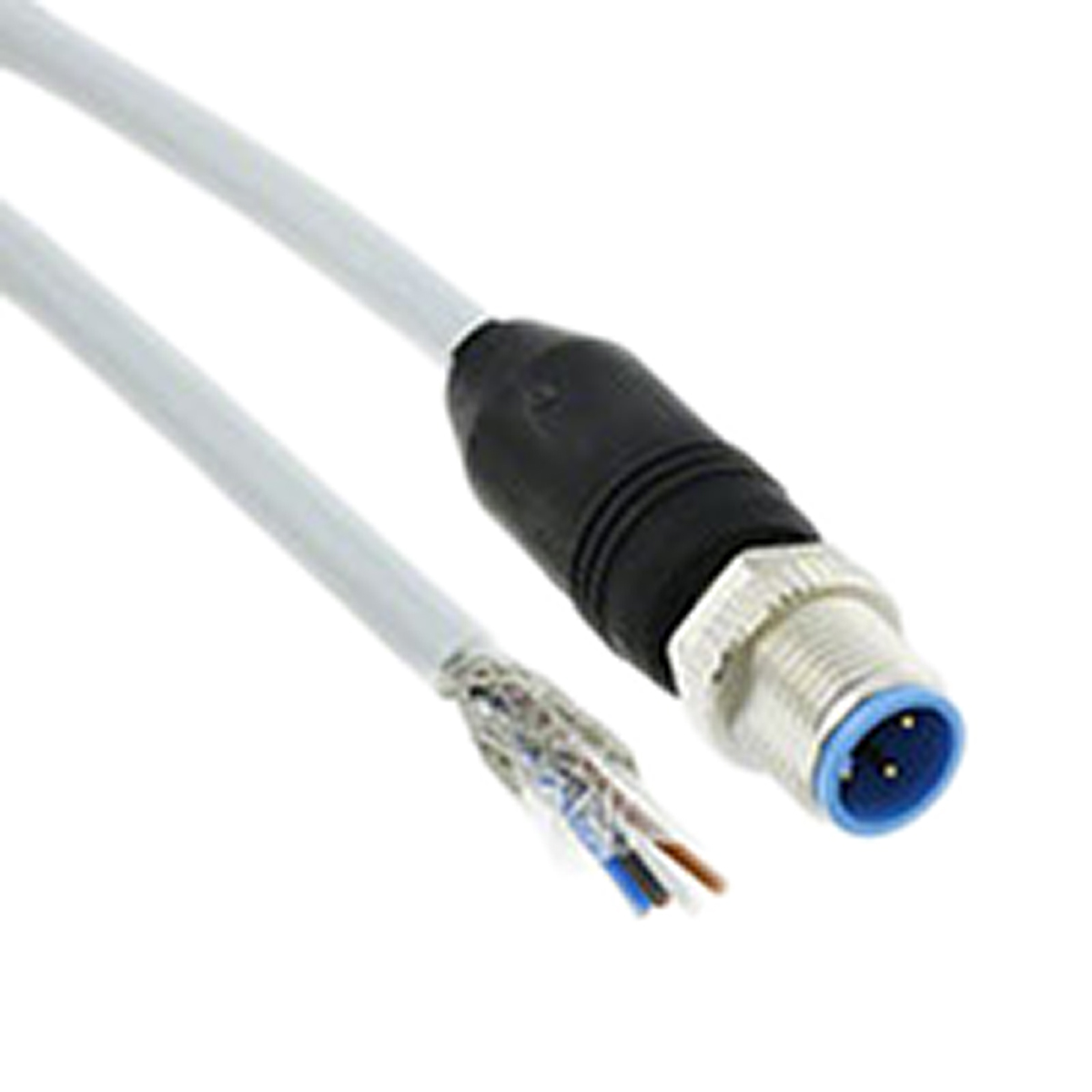

This is Cable assembly with a 4 Pole M12 Connector Plug and an Unterminated End 4 A 60 V ac/dc manufactured by TE Connectivity. The manufacturer part number is 1-2273044-1. Features 22 awg - American Wire Gauge. The product has a current rating of 4 a. The product consists of 4 cores. Its outer diameter is 5.9mm. The product complies with all safety standards, such as csa, elv compliant, en 60536, rohs compliant, ul. Moreover, this cable has a multicore shape. It is IP rated with ip65, ip67. Moreover, the product is shielded . The product has -30 → +80 °c of operating temperature range. It has a maximum operating temperature of +80°c. Moreover, the product has a nominal 60 v ac/dc voltage rating. The connector 1 has a straight orientation. It bears 59 mm of minimum bend radius. This connector 1 is a male. Its accurate length is 1.5m. The sheath is constructed from durable and adorable pur material. On the other hand, the gender of connector 1's housing is male. There are 4 contacts on connector 1. The product is coded with a. The sheath has an adorable grey colour. The product has 0.34 mm² cross section area. Whereas, the minimum operating temperature of the product is -30°c. While the Connector 2 is unterminated. Connector 1 is m12. It has a robust pvc insulation material.
For more information please check the datasheets.
