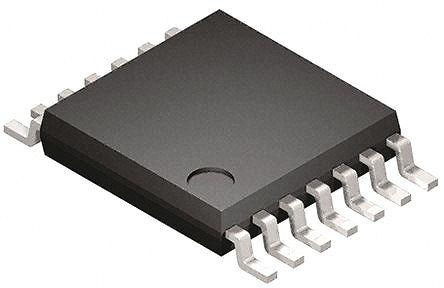

NXP 74LVT14PW, Hex Schmitt Trigger Inverter, 2.7 → 3.6 V, 14-Pin TSSOP
Product Information
Dimensions:
5.1 x 4.5 x 0.95mm
Logic Family:
LVT
Width:
4.5mm
Input Type:
Schmitt Trigger
Maximum Low Level Output Current:
32mA
Maximum High Level Output Current:
-20mA
Maximum Propagation Delay Time @ Maximum CL:
6.9 ns @ 50 pF
Minimum Operating Supply Voltage:
2.7 V
Output Type:
TTL
Package Type:
TSSOP
Number of Elements per Chip:
6
Maximum Operating Temperature:
+85 °C
Length:
5.1mm
Pin Count:
14
Mounting Type:
Surface Mount
Maximum Operating Supply Voltage:
3.6 V
Logic Function:
Inverter
Height:
0.95mm
Minimum Operating Temperature:
-40 °C
Schmitt Trigger Input:
Yes
Propagation Delay Test Condition:
50pF
Checking for live stock
FAQs
Yes. You can also search 74LVT14PW on website for other similar products.
We accept all major payment methods for all products including ET14158002. Please check your shopping cart at the time of order.
You can order Nexperia brand products with 74LVT14PW directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Schmitt Trigger Inverters category are shipped in lowest possible time.
You will get a confirmation email regarding your order of NXP 74LVT14PW, Hex Schmitt Trigger Inverter, 2.7 → 3.6 V, 14-Pin TSSOP. You can also check on our website or by contacting our customer support team for further order details on NXP 74LVT14PW, Hex Schmitt Trigger Inverter, 2.7 → 3.6 V, 14-Pin TSSOP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14158002 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nexperia" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14158002.
Yes. We ship 74LVT14PW Internationally to many countries around the world.
This is NXP Hex Schmitt Trigger Inverter 2.7 → 3.6 V 14-Pin TSSOP manufactured by Nexperia. The manufacturer part number is 74LVT14PW. The given dimensions of the product include 5.1 x 4.5 x 0.95mm. The logic family is lvt. Furthermore, the product is 4.5mm wide. It carries schmitt trigger input type. On the other hand, it is featured with 32ma of max. low level output current. While a -20ma of maximum high level output current. It provides up to 6.9 ns @ 50 pf maximum propagation delay time. While its minimum operating supply voltage is 2.7 v. Furthermore, it has attl output. The package is a sort of tssop. It consists of 6 elements per chip. It has a maximum operating temperature of +85 °c. Its accurate length is 5.1mm. It contains 14 pins. The product is available in surface mount configuration. It has 3.6 v maximum operating supply voltage. The primary function of logic includes inverter. In addition, the height is 0.95mm. Whereas, the minimum operating temperature of the product is -40 °c. Schmitt Trigger Input - yes. Features 50pf of propagation delay test condition.
