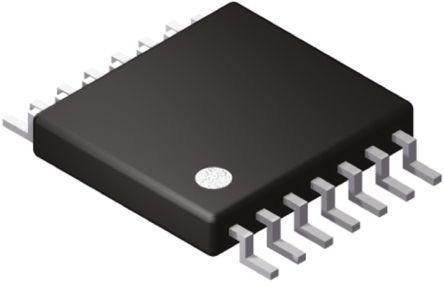

This is NXP Hex Schmitt Trigger Inverter 3 → 15 V 14-Pin TSSOP manufactured by Nexperia. The manufacturer part number is HEF40106BTT. On the other hand, it is featured with 2.4ma of max. low level output current. While a -2.4ma of maximum high level output current. The given dimensions of the product include 5.1 x 4.5 x 0.95mm. The product is available in surface mount configuration. It provides up to 180ns maximum propagation delay time. While its minimum operating supply voltage is 3 v. Whereas, the minimum operating temperature of the product is -40 °c. The primary function of logic includes inverter. Features 50pf of propagation delay test condition. The logic family is 4000. In addition, the height is 0.95mm. Furthermore, the product is 4.5mm wide. Its accurate length is 5.1mm. The package is a sort of tssop. It consists of 6 elements per chip. It carries schmitt trigger input type. Schmitt Trigger Input - yes. It has a maximum operating temperature of +125 °c. It contains 14 pins. It has 15 v maximum operating supply voltage.
HEF40106B Hex Inverting Schmitt Trigger Data Sheet(Technical Reference)
