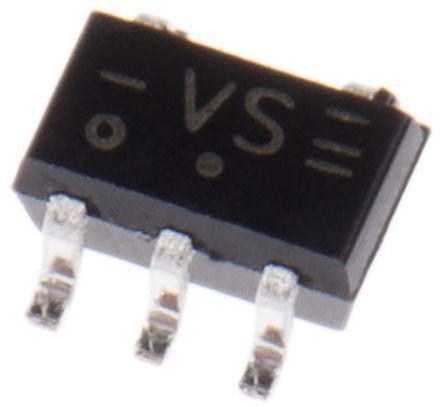

This is NXP Schmitt Trigger Inverter 4.5 → 5.5 V 5-Pin TSSOP manufactured by Nexperia. The manufacturer part number is 74HCT1G14GW. On the other hand, it is featured with 2ma of max. low level output current. While a -2ma of maximum high level output current. The given dimensions of the product include 2.25 x 1.35 x 1mm. The product is available in surface mount configuration. It provides up to 51ns maximum propagation delay time. While its minimum operating supply voltage is 4.5 v. Whereas, the minimum operating temperature of the product is -40 °c. The primary function of logic includes inverter. Features 50pf of propagation delay test condition. The logic family is hct. In addition, the height is 1mm. Furthermore, the product is 1.35mm wide. Its accurate length is 2.25mm. The package is a sort of tssop. It consists of 1 elements per chip. It carries schmitt trigger input type. Schmitt Trigger Input - yes. It has a maximum operating temperature of +125 °c. It contains 5 pins. It has 5.5 v maximum operating supply voltage.
74HC1G14; 74HCT1G14 Inverting Schmitt trigger Data Sheet(Technical Reference)
