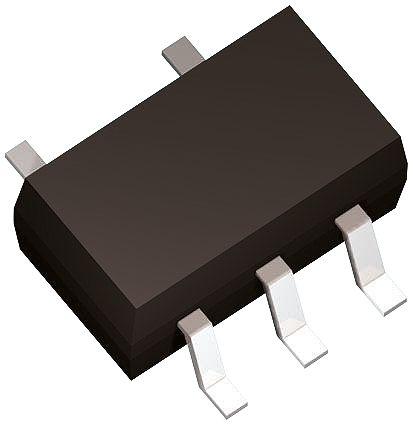

This is NXP Schmitt Trigger Inverter 4.5 → 5.5 V 5-Pin SC-74A manufactured by Nexperia. The manufacturer part number is 74HCT1G14GV. On the other hand, it is featured with 2.6ma of max. low level output current. While a -2.6ma of maximum high level output current. The given dimensions of the product include 3.1 x 1.7 x 1mm. The product is available in surface mount configuration. It provides up to 190 ns @ 50 pf maximum propagation delay time. While its minimum operating supply voltage is 4.5 v. Whereas, the minimum operating temperature of the product is -40 °c. The primary function of logic includes inverter. Features 50pf of propagation delay test condition. The logic family is hct. In addition, the height is 1mm. Furthermore, the product is 1.7mm wide. Its accurate length is 3.1mm. The package is a sort of sc-74a. It consists of 1 elements per chip. It carries schmitt trigger input type. Schmitt Trigger Input - yes. It has a maximum operating temperature of +125 °c. It contains 5 pins. It has 5.5 v maximum operating supply voltage.
74HCT1G14GV Inverting Schmitt Trigger Data Sheet(Technical Reference)
